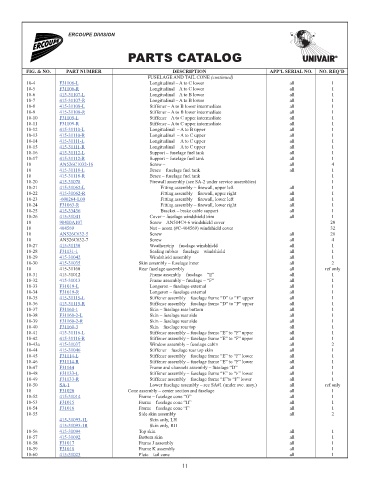

Page 16 - Ercoupe Parts Manual

ERCOUPE DIVISION

PARTS CATALOG

FIG. & NO. PART NUMBER DESCRIPTION APP’L SERIAL NO. NO. REQ’D
FUSELAGE AND TAIL CONE (continued)
10-4 F31106-L Longitudinal – A to C lower all 1 282.33
10-5 F31106-R Longitudinal – A to C lower all 1 282.33
10-6 415-31107-L Longitudinal – A to B lower all 1 157.82
10-7 415-31107-R Longitudinal – A to B lower all 1 157.82
10-8 415-31108-L Stiffener – A to B lower intermediate all 1 17.37
10-9 415-31108-R Stiffener – A to B lower intermediate all l 17.37
10-10 F31109-L Stiffener – A to C upper intermediate all 1 85.19
10-11 F31109-R Stiffener – A to C upper intermediate all 1 85.19
10-12 415-31110-L Longitudinal – A to B upper all 1 38.72
10-13 415-31110-R Longitudinal – A to C upper all 1 38.72
10-14 415-31111-L Longitudinal – A to C upper all 1 489.97
10-15 415-31111-R Longitudinal – A to C upper all 1 489.97
10-16 415-31112-L Support – fuselage fuel tank all 1 112.46
10-17 415-31112-R Support – fuselage fuel tank all 1 112.46
10 AN526C1032-16 Screw – all 4 0.6
10 415-31118-L Brace – fuselage fuel tank all 1 10.06
10 415-31118-R Brace – fuselage fuel tank 1 10.06
10-20 415-31078 Firewall assembly (see SA-2 under service assemblies) 1 1432.04
10-21 415-31062-L Fitting assembly – firewall, upper left all 1 238.58
10-22 415-31062-R Fitting assembly – firewall, upper right all 1 238.58
10-23 -600264-L00 Fitting assembly – firewall, lower left all 1 266.57
10-24 F31063-R Fitting assembly – firewall, lower right all 1 266.57
10-25 415-33436 Bracket – brake cable support all 1 45.21
10-26 415-31041 Cover – fuselage windshield trim all 1 215.55
10 90410A107 Screw – AN504C4-6 windshield cover 20 0.11
10 404569 Nut – acorn (#C-404569) windshield cover 32 0.09
10 AN526C632-5 Screw all 28 0.29
10 AN526C632-7 Screw all 4 NM!
10-27 415-31130 Weatherstrip – fuselage windshield all 1 35.68
10-28 F31131-1 Sealing rubber – fuselage – windshield all 1 34.62
10-29 415-31042 Windshield assembly all 1 227.33
10-30 415-31035 Skin assembly – fuselage inner all 2 402.43
10 415-31160 Rear fuselage assembly all ref only NM!
10-31 415-31012 Frame assembly – fuselage – “E” all 1 NM!
10-32 415-31013 Frame assembly – fuselage – “F” all 1 539.49
10-33 F31019-L Longeron – fuselage external all 1 354.21
10-34 F31019-R Longeron – fuselage external all 1 354.21
10-35 415-31115-L Stiffener assembly – fuselage frame “D” to “F” upper all 1 33.27
10-36 415-31115-R Stiffener assembly – fuselage frame “D” to “F” upper all 1 33.27
10-37 F31160-1 Skin – fuselage rear bottom all 1 85.19
10-38 F31160-2-L Skin – fuselage rear side all 1 636.73
10-39 F31160-2-R Skin – fuselage rear side all 1 636.73
10-40 F31160-3 Skin – fuselage rear top all 1 1492.61
10-41 415-31116-L Stiffener assembly – fuselage frame “E” to “F” upper all 1 33.27
10-42 415-31116-R Stiffener assembly – fuselage frame “E” to “F” upper all 1 33.27
10-43a 415-31037 Window assembly – fuselage cabin all 2 70.54
10-44 415-31046 Stiffener – fuselage rear top skin all 1 595.01
10-45 F31114-L Stiffener assembly – fuselage frame “E” to “F” lower all 1 41.24
10-46 F31114-R Stiffener assembly – fuselage frame “E” to “F” lower all 1 41.24
10-47 F31144 Frame and channels assembly – fuselage “D” all 1 1106.9
10-48 F31133-L Stiffener assembly – fuselage frame “E” to “F” lower all 1 50.75
10-49 F31133-R Stiffener assembly – fuselage frame “E”to “F” lower all 1 50.75
10-50 SA-1 Lower fuselage assembly – see SA#1 (under svc. assy.) all ref only 3670.54
10 F31020 Cone assembly – center section and fuselage all 1 7996.36
10-52 415-31014 Frame – fuselage cone “G” all 1 130.62
10-53 F31015 Frame – fuselage cone “H” all 1 102.99
10-54 F31016 Frame – fuselage cone “I” all 1 113.34
10-55 Side skin assembly all 2
415-31093-1L Skin only, LH 612.85
415-31093-1R Skin only, RH 612.85
10-56 415-31094 Top skin all 1 587.37
10-57 415-31092 Bottom skin all 1 566.03
10-58 F31017 Frame J assembly all 1 126.49
10-59 F31018 Frame K assembly all 1 169.45
10-60 415-31023 Plate – tail cone all 1 268.46
11
