ERCOUPE DIVISION
PARTS CATALOG

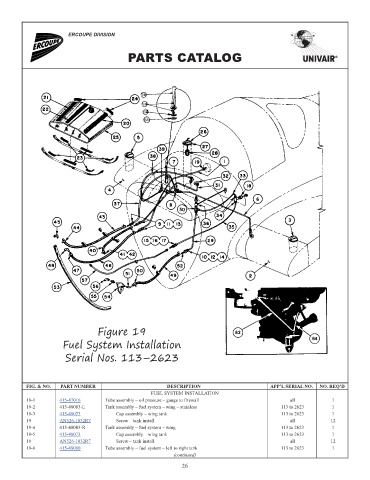

Figure 19
Fuel System Installation
Serial Nos. 113–2623
FIG. & NO. PART NUMBER DESCRIPTION APP’L SERIAL NO. NO. REQ’D
FUEL SYSTEM INSTALLATION
19-1 415-47016 Tube assembly – oil pressure – gauge to firewall all 1 64.13
19-2 415-48083-L Tank assembly – fuel system – wing – stainless 113 to 2623 1 NM!
19-3 415-48073 Cap assembly – wing tank 113 to 2623 1 103.73
19 AN526-1032R7 Screw – tank install all 12 0.2
19-4 415-48083-R Tank assembly – fuel system – wing 113 to 2623 1 NM!
19-5 415-48073 Cap assembly – wing tank 113 to 2623 1 103.73
19 AN526-1032R7 Screw – tank install all 12 0.2
19-6 415-48060 Tube assembly – fuel system – left to right tank 113 to 2623 1 76.05
(continued)
