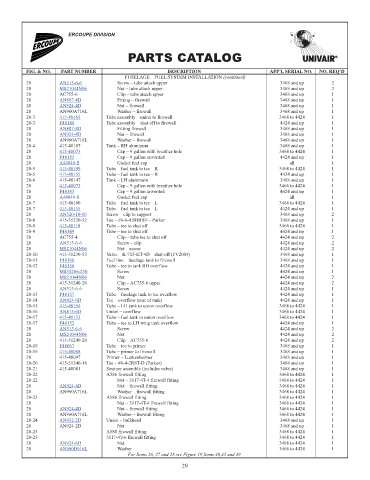

Page 34 - Ercoupe Parts Manual

ERCOUPE DIVISION

PARTS CATALOG

FIG. & NO. PART NUMBER DESCRIPTION APP’L SERIAL NO. NO. REQ’D
FUSELAGE – FUEL SYSTEM INSTALLATION (continued)
20 AN515-6-6 Screw – tube attach upper 3468 and up 2 0.11
20 MS21044N06 Nut – tube attach upper 3468 and up 2 0.32
20 AC755-6 Clip – tube attach upper 3468 and up 1 NM!
20 AN807-4D Fitting – firewall 3468 and up 1 21.32
20 AN924-4D Nut – firewall 3468 and up 1 2.14
20 AN960A716L Washer – firewall 3468 and up 1 NM!
20-3 415-48165 Tube assembly – union to firewall 3468 to 4424 1 26.83
20-3 F48148 Tube assembly – shut off to firewall 4424 and up 1 29.47
20 AN807-4D Fitting firewall 3468 and up 1 21.32
20 AN924-4D Nut – firewall 3468 and up 1 2.14
20 AN960A716L Washer – firewall 3468 and up 1 NM!
20-4 415-48187 Tank – RH aluminum 3468 and up 1 NM!
20 415-48073 Cap – 9 gallon with breather hole 3468 to 4424 1 103.73
20 F48183 Cap – 9 gallon unvented 4424 and up 1 67.46
20 A48049-S Gasket fuel cap all 1 8.06
20-5 415-48109 Tube – fuel tank to tee – R 3468 to 4424 1 99.91
20-5 415-48155 Tube – fuel tank to tee – R 4424 and up 1 19.84
20-6 415-48147 Tank – LH aluminum 3468 and up 1 NM!
20 415-48073 Cap – 9 gallon with breather hole 3468 to 4424 1 103.73
20 F48183 Cap – 9 gallon unvented 4424 and up 1 67.46
20 A48049-S Gasket fuel cap all 1 8.06
20-7 415-48190 Tube – fuel tank to tee – L 3468 to 4424 1 NM!
20-7 415-48155 Tube – fuel tank to tee – L 4424 and up 1 19.84
20 AN520-10-10 Screw – clip to support 3468 and up 2 2.39
20-8 415-31230-52 Tee – #6-6-4 SBBBT – Parker 3468 and up 1 NM!
20-9 415-48110 Tube – tee to shut off 3468 to 4424 1 25.3
20-9 F48149 Tube – tee to shut off 4424 and up 1 32.3
20 AC755-4 Clip – tube tee to shut off 4424 and up 2 NM!
20 AN515-6-6 Screw – clip 4424 and up 2 0.11
20 MS21044N06 Nut – screw 4424 and up 2 0.32
20-10 415-31230-53 Valve – K-715-HT-4D – shut-off (FV2004) 3468 and up 1 NM!
20-11 F48166 Fuel line – fuselage tank to firewall 3468 and up 1 51.45
20-12 F48156 Tube – tee to tank RH overflow 4424 and up 1 34.55
20 MS35206-230 Screw 4424 and up 1 0.08
20 MS21044N06 Nut 4424 and up 2 0.32
20 415-31240-20 Clip – AC755-6 upper 4424 and up 2 NM!
20 AN515-6-6 Screw 4424 and up 1 0.11
20-13 F48157 Tube – fuselage tank to tee overflow 4424 and up 1 43.82
20-14 AN824-6D Tee – overflow (rear of tank) 4424 and up 1 16.4
20-15 415-48194 Tube – LH tank to union overflow 3468 to 4424 1 190.52
20-16 AN815-6D Union – overflow 3468 to 4424 1 7.39
20-17 415-48133 Tube – fuel tank to union overflow 3468 to 4424 1 21.96
20-17 F48152 Tube – tee to LH wing tank overflow 4424 and up 1 29.38
20 AN515-6-6 Screw 4424 and up 2 0.11
20 MS21044N06 Nut 4424 and up 2 0.32
20 415-31240-20 Clip – AC755-6 4424 and up 2 NM!
20-18 F48067 Tube – tee to primer 3468 and up 1 91.14
20-19 415-48068 Tube – primer to firewall 3468 and up 1 18.05
20 415-48097 Primer – Lunkenheimer 3468 and up 1 NM!
20-20 415-31240-16 Tee – #6-4-2RST-D (Parker) 3468 and up 1 NM!
20-21 415-48081 Strainer assembly (includes valve) 3468 and up 1 NM!
20-22 A586 firewall fitting 3468 to 4424 1
20-22 Nut – 3117-4T-4 firewall fitting 3468 to 4424 1
20 AN924-4D Nut – firewall fitting 3468 to 4424 1 2.14
20 AN960A716L Washer – firewall fitting 3468 to 4424 1 NM!
20-23 A586 firewall fitting 3468 to 4424 1
20 Nut – 3117-4T-4 firewall fitting 3468 to 4424 1
20 AN924-4D Nut – firewall fitting 3468 to 4424 1 2.14
20 AN960A716L Washer – firewall fitting 3468 to 4424 1 NM!
20-24 AN832-2D Union – bulkhead 3468 and up 1 12.5
20 AN924-2D Nut 3468 and up 1 NM!
20-25 A588 firewall fitting 3468 to 4424 1
20-25 3117-4T-6 firewall fitting 3468 to 4424 1
20 AN924-6D Nut 3468 to 4424 1 2.22
20 AN960D916L Washer 3468 to 4424 1 0.14
For Items 26, 27 and 28 see Figure 19,Items 46,43 and 49
29
