Page 33 - Ercoupe Parts Manual
P. 33
ERCOUPE DIVISION
PARTS CATALOG

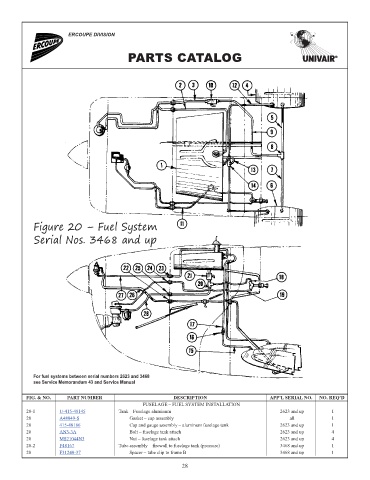

Figure 20 – Fuel System
Serial Nos. 3468 and up
For fuel systems between serial numbers 2623 and 3468
see Service Memorandum 43 and Service Manual
FIG. & NO. PART NUMBER DESCRIPTION APP’L SERIAL NO. NO. REQ’D
FUSELAGE – FUEL SYSTEM INSTALLATION
20-1 U-415-48145 Tank – Fuselage aluminum 2623 and up 1 2820.03
20 A48049-S Gasket – cap assembly all 1 8.06
20 415-48186 Cap and gauge assembly – aluminum fuselage tank 2623 and up 1 169.88
20 AN3-3A Bolt – fuselage tank attach 2623 and up 4 0.16
20 MS21044N3 Nut – fuselage tank attach 2623 and up 4 0.24
20-2 F48167 Tube assembly – firewall to fuselage tank (pressure) 3468 and up 1 31.5
20 F31240-37 Spacer – tube clip to frame B 3468 and up 1 13.54
