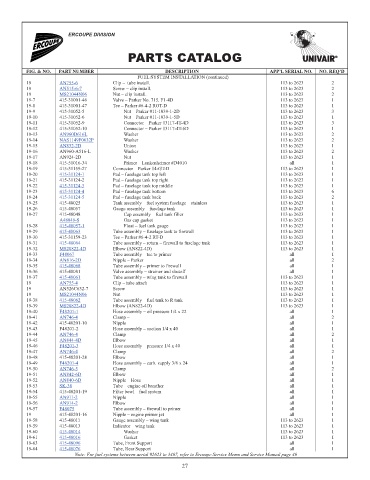

Page 32 - Ercoupe Parts Manual

ERCOUPE DIVISION

PARTS CATALOG

FIG. & NO. PART NUMBER DESCRIPTION APP’L SERIAL NO. NO. REQ’D
FUEL SYSTEM INSTALLATION (continued)
19 AN755-6 Clip – tube install. 113 to 2623 2 0.52
19 AN515-6-7 Screw – clip install. 113 to 2623 2 0.45
19 MS21044N06 Nut – clip install. 113 to 2623 2 0.32
19-7 415-31001-46 Valve – Parker No. 715. F1-4D 113 to 2623 1 NM!
19-8 415-31001-47 Tee – Parker #6-4-2 ROT-D 113 to 2623 1 NM!
19-9 415-31052-5 Nut – Parker #11-1039-1-2D 113 to 2623 3 NM!
19-10 415-31052-6 Nut – Parker #11-1039-1-5D 113 to 2623 1 NM!
19-11 415-31052-9 Connector – Parker #3117-4T-4D 113 to 2623 3 NM!
19-12 415-31052-10 Connector – Parker #3117-4T-6D 113 to 2623 1 NM!
19-13 AN960D616L Washer 113 to 2623 2 0.05
19-14 NAS1149F0632P Washer 113 to 2623 2 0.06
19-15 AN832-2D Union 113 to 2623 1 12.5
19-16 AN960-A516-L Washer 113 to 2623 2 NM!
19-17 AN924-2D Nut 113 to 2623 1 NM!
19-18 415-51016-34 Primer – Lunkenheimer #D4010 all 1 NM!
19-19 415-31159-27 Connector – Parker #4-GT-D 113 to 2623 1 NM!
19-20 415-31124-1 Pad – fuselage tank top left 113 to 2623 1 12.19
19-21 415-31124-2 Pad – fuselage tank top right 113 to 2623 1 NM!
19-22 415-31124-3 Pad – fuselage tank top middle 113 to 2623 1 8.24
19-23 415-31124-4 Pad – fuselage tank bottom 113 to 2623 6 23.47
19-24 415-31124-5 Pad – fuselage tank back 113 to 2623 2 10.96
19-25 415-48025 Tank assembly – fuel system fuselage – stainless 113 to 2623 1 NM!
19-26 415-48057 Gauge assembly – fuselage tank 113 to 2623 1 NM!
19-27 415-48048 Cap assembly – fuel tank filler 113 to 2623 1 NM!
A48049-S Gas cap gasket 113 to 2623 1 8.06
19-28 415-48057-1 Float – fuel tank gauge 113 to 2623 1 24.03
19-29 415-48063 Tube assembly – fuselage tank to firewall 113 to 2623 1 27.86
19-30 415-31159-23 Tee – Parker #6-4-2 RT-D 113 to 2623 1 NM!
19-31 415-48064 Tube assembly – return – firewall to fuselage tank 113 to 2623 1 17.56
19-32 MS20822-4D Elbow (AN822-4D) 113 to 2623 1 20
19-33 F48067 Tube assembly – tee to primer all 1 91.14
19-34 AN816-2D Nipple – Parker all 2 8.5
19-35 415-48068 Tube assembly – primer to firewall all 1 18.05
19-36 415-48081 Valve assembly – strainer and shutoff all 1 NM!
19-37 415-48061 Tube assembly – wing tank to firewall 113 to 2623 1 126.34
19 AN755-4 Clip – tube attach 113 to 2623 1 0.5
19 AN526C632-7 Screw 113 to 2623 1 NM!
19 MS21044N06 Nut 113 to 2623 1 0.32
19-38 415-48062 Tube assembly – fuel tank to R tank 113 to 2623 1 20.16
19-39 MS20822-4D Elbow (AN822-4D) 113 to 2623 1 20
19-40 F48201-1 Hose assembly – oil pressure 1/4 x 22 all 1 103.34
19-41 AN746-4 Clamp – all 2 1.71
19-42 415-48201-10 Nipple all 1 NM!
19-43 F48201-2 Hose assembly – suction 1/4 x 40 all 1 NM!
19-44 AN746-4 Clamp all 2 1.71
19-45 AN844-4D Elbow all 1 19.8
19-46 F48201-3 Hose assembly – pressure 1/4 x 40 all 1 91.58
19-47 AN746-4 Clamp all 2 1.71
19-48 415-48201-28 Elbow all 1 NM!
19-49 F48201-4 Hose assembly – carb. supply 3/8 x 24 all 1 78.38
19-50 AN746-5 Clamp all 2 1.71
19-51 AN842-6D Elbow all 1 21
19-52 AN840-6D Nipple – Hose all 1 11.96
19-53 SK-38 Tube – engine oil breather all 1 426.94
19-54 415-48201-19 Filter bowl – fuel system all 1 NM!
19-55 AN911-2 Nipple all 1 7.42
19-56 AN914-2 Elbow all 1 30
19-57 F48075 Tube assembly – firewall to primer all 1 49.54
19 415-48201-16 Nipple – engine primer jet all 1 NM!
19-58 415-48011 Gauge assembly – wing tank 113 to 2623 1 NM!
19-59 415-48013 Indicator – wing tank 113 to 2623 1 NM!
19-60 415-48014 Washer 113 to 2623 1 3.34
19-61 415-48016 Gasket 113 to 2623 1 3.82
19-63 415-48096 Tube, Front Support all 1 76.87
19-64 415-48076 Tube, Rear Support all 1 61.46
Note: For fuel systems between aerial #2623 to 3467, refer to Ercoupe Service Memo and Service Manual page 46
27
