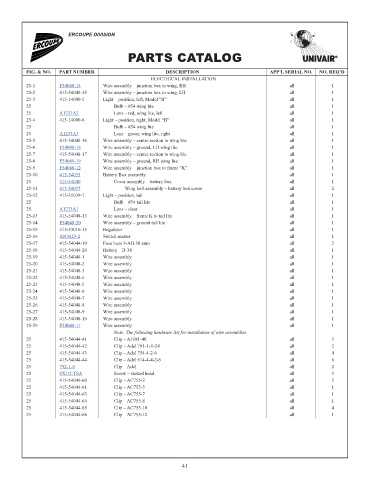

Page 46 - Ercoupe Parts Manual

ERCOUPE DIVISION

PARTS CATALOG

FIG. & NO. PART NUMBER DESCRIPTION APP’L SERIAL NO. NO. REQ’D
ELECTRICAL INSTALLATION
25-1 F54048-14 Wire assembly – junction box to wing, RH all 1 18.05
25-2 415-54048-15 Wire assembly – junction box to wing, LH all 1 NM!
25-3 415-14000-5 Light – position, left, Model “B” all 1 NM!
25 Bulb – #54 wing lite all 1
25 A1233A2 Lens – red, wing lite, left all 1 69.9
25-4 415-14000-6 Light – position, right, Model “B” all 1 NM!
25 Bulb – #54 wing lite all 1
25 A1233A3 Lens – green, wing lite, right all 1 69.9
25-5 415-54048-16 Wire assembly – center section to wing lite all 1 NM!
25-6 F54048-18 Wire assembly – ground, LH wing lite all 1 4.58
25-7 415-54048-17 Wire assembly – center section to wing lite all 1 NM!
25-8 F54048-19 Wire assembly – ground, RH wing lite all 1 4.58
25-9 F54048-12 Wire assembly – junction box to frame “K” all 1 12.68
25-10 415-54035 Battery Box assembly all 1 416.23
25 415-54040 Cover assembly – battery box all 1 395.8
25-11 415-54037 Wing bolt assembly – battery box cover all 2 27.98
25-12 415-31039-7 Light – position, tail all 1 NM!
25 Bulb – #54 tail lite all 1
25 A1233A1 Lens – clear all 1 69.78
25-13 415-54048-13 Wire assembly – frame K to tail lite all 1 NM!
25-14 F54048-20 Wire assembly – ground tail lite all 1 8.26
25-15 415-53016-15 Regulator all 1 NM!
25-16 AN3023-2 Switch master all 1 70
25-17 415-54044-19 Fuse buss 3-AG 30 amp all 2 NM!
25-18 415-54044-20 Battery – B-34 all 1 NM!
25-19 415-54048-1 Wire assembly all 1 NM!
25-20 415-54048-2 Wire assembly all 1 NM!
25-21 415-54048-3 Wire assembly all 1 NM!
25-22 415-54048-4 Wire assembly all 1 NM!
25-23 415-54048-5 Wire assembly all 1 NM!
25-24 415-54048-6 Wire assembly all 1 NM!
25-25 415-54048-7 Wire assembly all 1 NM!
25-26 415-54048-8 Wire assembly all 1 NM!
25-27 415-54048-9 Wire assembly all 1 NM!
25-28 415-54048-10 Wire assembly all 1 NM!
25-29 F54048-11 Wire assembly all 1 12.86
Note: The following hardware list for installation of wire assemblies
25 415-54044-41 Clip – A3181-40 all 3 NM!
25 415-54044-42 Clip – Adel 791-1-E-24 all 2 NM!
25 415-54044-43 Clip – Adel 754-4-2-6 all 4 NM!
25 415-54044-44 Clip – Adel 614-4-4-2-6 all 6 NM!
25 792-1-8 Clip – Adel all 2 3.46
25 8X1/2-TSA Screw – slotted head all 3 0.08
25 415-54044-60 Clip – AC755-2 all 3 NM!
25 415-54044-61 Clip – AC755-5 all 1 NM!
25 415-54044-63 Clip – AC755-7 all 1 NM!
25 415-54044-64 Clip – AC755-8 all 1 NM!
25 415-54044-65 Clip – AC755-10 all 4 NM!
25 415-54044-66 Clip – AC755-12 all 1 NM!

41
