Page 48 - Ercoupe Parts Manual

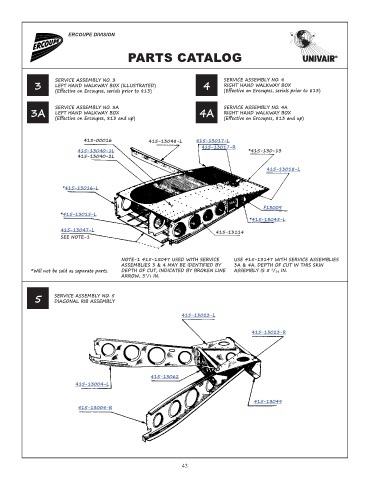

ERCOUPE DIVISION

PARTS CATALOG

SERVICE ASSEMBLY NO. 3 SERVICE ASSEMBLY NO. 4
3 LEFT HAND WALKWAY BOX (ILLUSTRATED) 4 RIGHT HAND WALKWAY BOX
(Effective on Ercoupes, serials prior to 813) (Effective on Ercoupes, serials prior to 813)

SERVICE ASSEMBLY NO. 3A SERVICE ASSEMBLY NO. 4A
3A LEFT HAND WALKWAY BOX 4A RIGHT HAND WALKWAY BOX
(Effective on Ercoupes, 813 and up) (Effective on Ercoupes, 813 and up)

415-00016 415-13048-L 415-13017-L
415-13017-R
415-13040-1L *415-130-13
415-13040-2L
415-13018-L

*415-13016-L

F13009
*415-13015-L
*415-13045-L
415-13047-L
415-13114
SEE NOTE-1

NOTE-1 415-15047 USED WITH SERVICE USE 415-13147 WITH SERVICE ASSEMBLIES
ASSEMBLIES 3 & 4 MAY BE IDENTIFIED BY 3A & 4A. DEPTH OF CUT IN THIS SKIN
1
*Will not be sold as separate parts. DEPTH OF CUT, INDICATED BY BROKEN LINE ASSEMBLY IS 5 /16 IN.
ARROW, 3 /8 IN.
7

5 SERVICE ASSEMBLY NO. 5
DIAGONAL RIB ASSEMBLY

415-13023-L

415-13023-R

415-13062
415-13004-L

415-13049
415-13004-R

43
