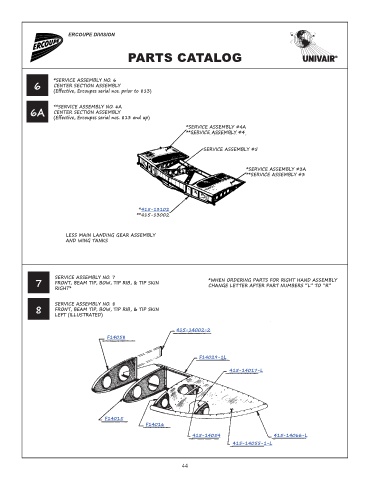

ERCOUPE DIVISION

PARTS CATALOG

*SERVICE ASSEMBLY NO. 6
6 CENTER SECTION ASSEMBLY
(Effective, Ercoupes serial nos. prior to 813)

**SERVICE ASSEMBLY NO. 6A
6A CENTER SECTION ASSEMBLY
(Effective, Ercoupes serial nos. 813 and up)
*SERVICE ASSEMBLY #4A
**SERVICE ASSEMBLY #4

SERVICE ASSEMBLY #5

*SERVICE ASSEMBLY #3A
**SERVICE ASSEMBLY #3

*415-13102
**415-13002

LESS MAIN LANDING GEAR ASSEMBLY
AND WING TANKS

SERVICE ASSEMBLY NO. 7
7 FRONT, BEAM TIP, BOW, TIP RIB, & TIP SKIN *WHEN ORDERING PARTS FOR RIGHT HAND ASSEMBLY
CHANGE LETTER AFTER PART NUMBERS “L” TO “R”
RIGHT*
SERVICE ASSEMBLY NO. 8
8 FRONT, BEAM TIP, BOW, TIP RIB, & TIP SKIN
LEFT (ILLUSTRATED)

415-14002-2
F14058

F14029-1L

415-14017-L

F14015
F14016
415-14054 415-14066-L
415-14055-1-L
