Page 43 - Ercoupe Parts Manual
P. 43
ERCOUPE DIVISION
PARTS CATALOG

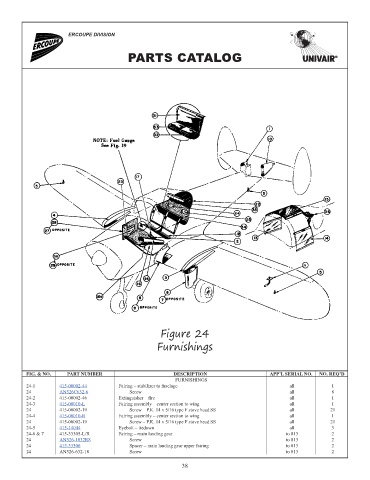

Figure 24
Furnishings
FIG. & NO. PART NUMBER DESCRIPTION APP’L SERIAL NO. NO. REQ’D
FURNISHINGS
24-1 415-00002-44 Fairing – stabilizer to fuselage all 1 14.44
24 AN526C632-6 Screw all 8 0.23
24-2 415-00002-46 Extinguisher – fire all 1 NM!
24-3 415-00010-L Fairing assembly – center section to wing all 1 66.89
24 415-00002-19 Screw – P.K. #4 x 5/16 type F stove head SS all 21 NM!
24-4 415-00010-R Fairing assembly – center section to wing all 1 68.29
24 415-00002-19 Screw – P.K. #4 x 5/16 type F stove head SS all 21 NM!
24-5 415-14044 Eyebolt – tiedown all 3 12.56
24-6 & 7 415-33305-L/R Fairing – main landing gear to 813 2 NM!
24 AN526-1032R8 Screw to 813 2 0.18
24 415-33306 Spacer – main landing gear upper fairing to 813 2 5.45
24 AN526-632-18 Screw to 813 2 NM!
