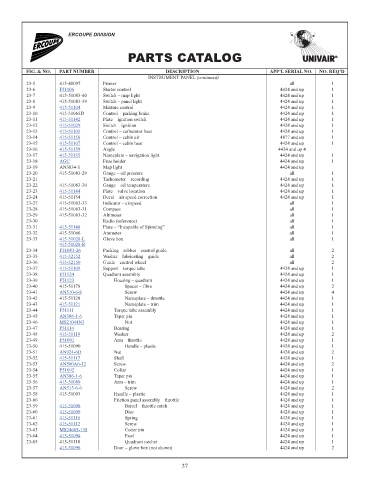

Page 42 - Ercoupe Parts Manual
P. 42

ERCOUPE DIVISION


                                           PARTS CATALOG


          FIG. & NO.  PART NUMBER                       DESCRIPTION                       APP’L SERIAL NO.  NO. REQ’D
                                                  INSTRUMENT PANEL (continued)
          23-5       415-48097     Primer                                                        all           1                    NM!
          23-6       F51106        Starter control                                            4424 and up      1                  388.64
          23-7       415-51083-40  Switch – map light                                         4424 and up      1                    NM!
          23-8       415-51083-39  Switch – panel light                                       4424 and up      1                    NM!
          23-9       415-51104     Mixture control                                            4424 and up      1                  109.05
          23-10      415-51065D    Control – parking brake                                    4424 and up      1                    NM!
          23-11      415-51142     Plate – ignition switch                                    4424 and up      1                    10.3
          23-12      415-51029     Switch – ignition                                          4424 and up      1                   15.44
          23-13      415-51105     Control – carburetor heat                                  4424 and up      1                  153.23
          23-14      415-51158     Control – cabin air                                        4877 and up      1                  108.06
          23-15      415-51107     Control – cabin heat                                       4424 and up      1                   97.47
          23-16      415-51159     Angle                                                     4424 and up 4                          7.72
          23-17      415-51135     Nameplate – navigation light                               4424 and up      1                   14.17
          23-18      AGC           Fuse holder                                                4424 and up      1                    3.88
          23-19      AN3034-1      Map light                                                  4424 and up                           NM!
          23-20      415-51083-29  Gauge – oil pressure                                          all           1                    NM!
          23-21                    Tachometer – recording                                     4424 and up      1
          23-22      415-51083-30  Gauge – oil temperature                                    4424 and up      1                    NM!
          23-23      415-51144     Plate – valve location                                     4424 and up      1                    6.96
          23-24      415-51154     Decal – air speed correction                               4424 and up      1                    NM!
          23-27      415-51083-33  Indicator – airspeed                                          all           1                    NM!
          23-28      415-51083-31  Compass                                                       all           1                    NM!
          23-29      415-51083-32  Altimeter                                                     all           1                    NM!
          23-30                    Radio (reference)                                             all           1
          23-31      415-51148     Plate – “Incapable of Spinning”                               all           1                    17.8
          23-32      415-51066     Ammeter                                                       all           1                    NM!
          23-33      415-51028-L   Glove box                                                     all           1                  105.63
                     415-51028-R
          23-34      F51083-26     Packing – rubber – control guide                              all           2                    2.61
          23-35      415-52152     Washer – lubricating – guide                                  all           2                    1.66
          23-36      415-52150     Guide – control wheel                                         all           2                   99.91
          23-37      415-51109     Support – torque tube                                      4424 and up      1                   20.14
          23-38      F51124        Quadrant assembly                                          4424 and up      1                  922.92
          23-39      F51123            Housing – quadrant                                     4424 and up      1                   51.59
          23-40      415-51178            Spacer – fibre                                      4424 and up      2                    NM!
          23-41      AN510-6-8            Screw                                               4424 and up      4                     0.5
          23-42      415-51120            Nameplate – throttle                                4424 and up      1                    NM!
          23-43      415-51121            Nameplate – trim                                    4424 and up      1                   12.86
          23-44      F51111            Torque tube assembly                                   4424 and up      1                  158.98
          23-45      AN386-1-6         Taper pin                                              4424 and up      1                    3.04
          23-46      MS21044N3            Nut                                                 4424 and up      1                    0.24
          23-47      F51114            Bearing                                                4424 and up      1                    11.6
          23-48      415-51119         Washer                                                 4424 and up      2                    1.05
          23-49      F51091            Arm – throttle                                         4424 and up      1                   35.89
          23-50      415-51090            Handle – plastic                                    4424 and up      1                    NM!
          23-51      AN924-6D          Nut                                                    4424 and up      2                    2.22
          23-52      415-51117         Shaft                                                  4424 and up      1                   46.47
          23-53      AN500A6-12        Screw                                                  4424 and up      2                     0.6
          23-54      F51092            Collar                                                 4424 and up      1                  175.27
          23-55      AN386-1-6         Taper pin                                              4424 and up      1                    3.04
          23-56      415-51089         Arm – trim                                             4424 and up      1                   10.59
          23-57      AN515-6-6            Screw                                               4424 and up      2                    0.11
          23-58      415-51093         Handle – plastic                                       4424 and up      1                    NM!
          23-66                        Friction panel assembly – throttle                     4424 and up      1
          23-59      415-51098            Barrel – throttle catch                             4424 and up      1                  206.48
          23-60      415-51099            Disc                                                4424 and up      1                   48.64
          23-61      415-51116            Spring                                              4424 and up      1                    1.46
          23-62      415-51112            Screw                                               4424 and up      1                    8.96
          23-63      MS24665-138          Cotter pin                                          4424 and up      1                    0.08
          23-64      415-51094            Pawl                                                4424 and up      1                   11.83
          23-65      415-51118            Quadrant ratchet                                    4424 and up      1                    NM!
                     415-51096         Door – glove box (not shown)                           4424 and up      2                  265.04
