P. 41
ERCOUPE DIVISION
PARTS CATALOG

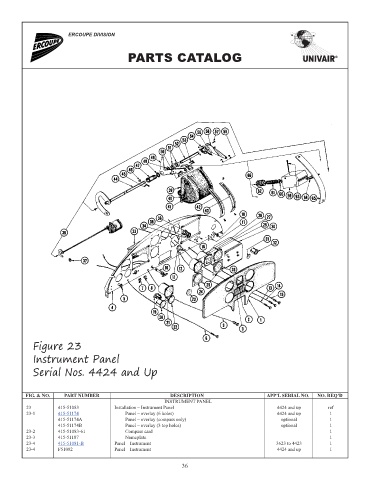

Figure 23
Instrument Panel
Serial Nos. 4424 and Up
FIG. & NO. PART NUMBER DESCRIPTION APP’L SERIAL NO. NO. REQ’D
INSTRUMENT PANEL
23 415-51083 Installation – Instrument Panel 4424 and up ref NM!
23-1 415-51174 Panel – overlay (6 holes) 4424 and up 1 318.09
415-51174A Panel – overlay (compass only) optional 1 NM!
415-51174B Panel – overlay (3 top holes) optional 1 NM!
23-2 415-51083-61 Compass card 1 NM!
23-3 415-51187 Nameplate 1 NM!
23-4 415-51081-B Panel – Instrument 3623 to 4423 1 523.53
23-4 F51082 Panel – Instrument 4424 and up 1 NM!
36
