4-1/4 P.K. SCREW STV. HD. U3-456 COVER – ELEVATOR HORN AN530-8-8 SCREWS A365-832 TYPE “U” NUT 4-565 LEFT ELEVATOR U4-562 TRIM TAB TAIL WHEEL HORN AN665-21L TERMINAL AN665-21R TERMINAL AN315-3L NUT AN315-3 NUT MS20392-2C11 PIN U5-180-L LEFT AILERON (UNCOVERED) 4-547 LEFT WING AN24-14 BOLT AN320-4 NUT

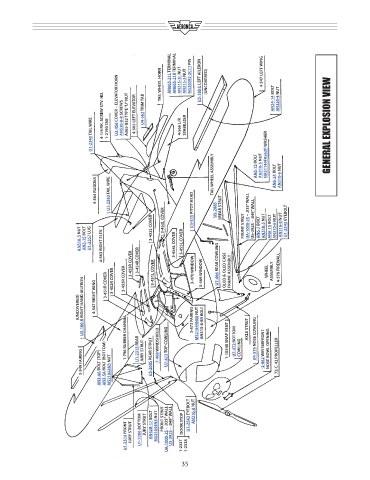

U1-2340 TAIL WIRE 1-2190 TAB 4-566 L/R STABILIZER GENERAL EXPLOSION VIEW

TAIL WHEEL ASSEMBLY AN5-15 BOLT AN310-5 NUT NAS1149F0563P WASHER AN6-24 BOLT AN310-6 NUT

4-564 RUDDER U1-2340 TAIL WIRE U3-535 PITOT HEAD U5-268S REAR STRUT

AN310-3 NUT AN3-15 BOLT U1-2357 LUG 4-563 RIGHT ELEV. 3-453R COVER 3-454R COVER 3-452L COVER 3-453L COVER 3-454L COVER 3-455L COVER 3-470 WINDOW U7-466 REAR COWLING OLEO & OLEO CASE FRAME ASSEMBLY FRONT STRUT UA-1000-2S – .035” WALL U5-392S – .049” WALL AN6-7 BOLT AN310-5 NUT WHEEL AN6-15 BOLT ASSEMBLY AN310-6 NUT 4-578 FIREWALL AN316-8 NUT U1-2543 EYEBOLT

U5-180-R RIGHT HAND AILERON 4-547 RIGHT WING 3-451R COVER 3-452R COVER 3-455R COVER 3-451L COVER 3-469 WINDOW

(UNCOVERED) 7-480 DOOR 3-473 FAIRING MS21044N08 NUT AN515-8-8R BOLT AXLE STRUT

3-549 FAIRING AN3-4A BOLT (TOP) AN3-5A BOLT (BOTTOM) MS21044N3 NUT 1-796 RUBBER CHANNEL U1-2315 REAR JURY STRUT U5-268S REAR STRUT -7-468 WINDSHIELD U7-473 TOP COWLING 1-10340 SNAP VENT U7-472 BOTTOM COWLING U4-576 NOSE COWLING -2-862 WINTERFRONT NOSE BOWL OPENING 72-C-42 PROPELLER

U1-2314 FRONT JURY STRUT U1-2286 BOTTOM JURY STRUT AN42B-17 BOLT MS21044N3 NUT FRONT STRUT UA-1000-2S – .035” WALL U5-392S – .049” WALL 1-2337 DOOR STOP 1-2338 U1-2543 EYEBOLT AN316-8 NUT

35
