P. 40

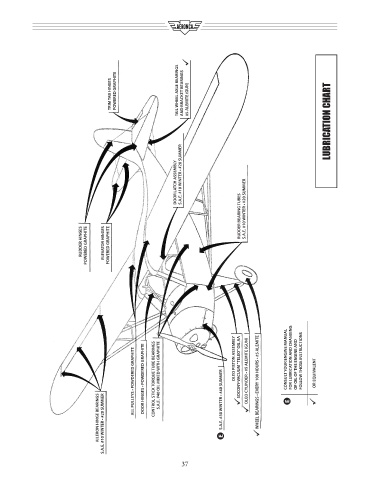

TRIM TAB HINGES  POWERED GRAPHITE  TAIL WHEEL AXLE BEARINGS  AND BRACKET BEARINGS  #5 ALEMITE (GUN)  LUBRICATION CHART















                                                           DOOR LATCH ASSEMBLY S.A.E. #10 WINTER • #20 SUMMER  S.A.E. #10 WINTER • #20 SUMMER












                            RUDDER HINGES  POWERED GRAPHITE  ELEVATOR HINGES  POWERED GRAPHITE  RUDDER BEARING TUBES























                                             ALL PULLEYS • POWDERED GRAPHITE DOOR HINGES • POWDERED GRAPHITE CONTROL STICK TORQUE TUBE BEARINGS S.A.E. #40 OIL MIXED WITH GRAPHITE  OLEO PISTON ASSEMBLY SOCONY-VACUUM “TELEO” OIL AA OLEO CYLINDER • #5 ALEMITE (GUN) WHEEL BEARINGS • EVERY 100 HOURS • #5 ALEMITE  CONSULT YOUR ENGINE MANUAL  FOR LUBRICATION AND CHANGING  OF OIL OF THE ENGINE AND  FOLLOW THOSE INSTRUCTIONS  OR EQUIVALENT







                                  AILERON HINGE BEARINGS S.A.E. #10 WINTER • #20 SUMMER  S.A.E. #30 WINTER • #40 SUMMER  E  E












                                                             37
