1-2424 ROD AN7-37 BOLT
NAS1149F0763P WASHER
AN310-7 NUT
1-1776 SPRING U21530A LARGE WASHER
AN515-8-5 SCREW
420-832 NUT PLATE
-1-873 INTER-CYLINDER 1-2439 TACH. SHAFT
BAFFLE – CYLINDER BARREL
2 REQ. AN931-8-20 GROMMET
1-1737 INTER-CYLINDER BAFFLE
– CYLINDER HEAD • 2 REQ. OIL TEMPERATURE LINE ASSEMBLY

MS35489-14 GROMMET
7-478 LEFT FRONT BAFFLE

3-503 CABIN HEATER BOX ASSEMBLY
AN515-8-6 SCREW • 3 REQ.
420-832-1 NUT PLATE • 4 REQ.
AN515-8-8 SCREW • 1 REQ.

AN515-8-5 SCREW
420-832-1 NUT PLATE
AN520-10-32 BOLT
AN315-3 NUT AN931-8-9 GROMMET
7-446-3 1½” I.D. FLEXIBLE TUBING AN520-10-32 BOLT
2-745 CARB. HEATER CONTROL AN315-3 NUT
TYPICAL PROPELLER INSTALLATION 7-458-9 1/16” x 7/8” WEBBING
PARTS FURNISHED BY
CONTINENTAL MOTORS CORP. S-5-200 DZUS SPRING
IGNITION WIRES

AN520-10-44 SCREW
AN315-3 NUT
7-446-5 2” FLEXIBLE ALUMINUM TUBING

1-2437 BAFFLE HEATER MUFF
U3-478/479 HEAT MUFF – EXHAUST SIDE – CABIN HEATER*
*(Used on left and right stacks)
AN520-10-32 SCREW • AN315-3 NUT
1-2415 ELBOW

7-446-1 FLEX. TUBE – CARB. HEATER INTAKE
1-2584 BOLT
NAS1149F0332P WASHER
MS21044N3 NUT
1-2566 SPRING – AIR SCOOP LEVER
ENGINE AND BAFFLE AN520-10-32 SCREW • AN315-3 NUT 362-F1032 NUT – SELF LOCKING
3-514 OIL BREATHER LINE

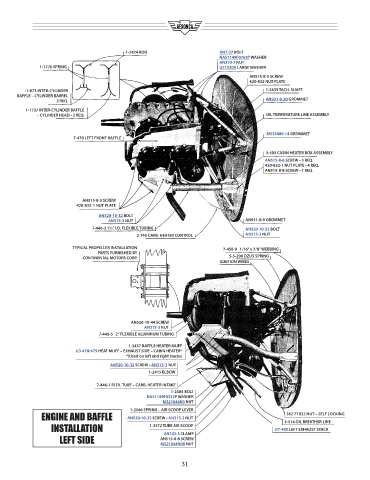

INSTALLATION 1-2572 TUBE AIR SCOOP U7-485 LEFT EXHAUST STACK
AN742-3 CLAMP
LEFT SIDE AN515-8-8 SCREW
MS21044N08 NUT
