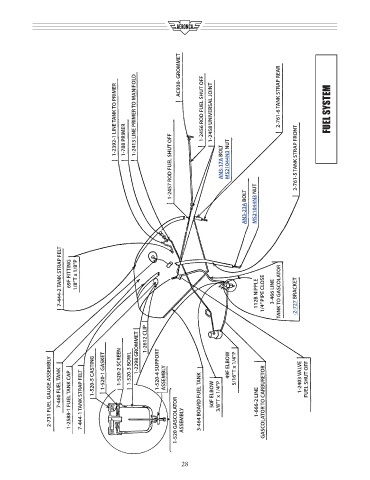

1-2392-1 LINE TANK TO PRIMER 1-788 PRIMER 1-2413 LINE PRIMER TO MANIFOLD AC930- GROMMET 1-2456 ROD FUEL SHUT OFF 1-2458 UNIVERSAL JOINT 2-761-6 TANK STRAP REAR FUEL SYSTEM
1-2457 ROD FUEL SHUT OFF AN3-17A BOLT MS21044N3 NUT 2-761-5 TANK STRAP FRONT
AN3-23A BOLT MS21044N3 NUT
7-444-2 TANK STRAP FELT 69F FITTING 1/8”T x 1/8”P 112B NIPPLE 1/4” PIPE CLOSE 3-466 LINE TANK TO GASCOLATOR -2-727 BRACKET
2-731 FUEL GAUGE ASSEMBLY 7-460 FUEL TANK 1-2588-1 FUEL TANK CAP 7-444-1 TANK STRAP FELT 1-520-5 CASTING 1-520-1 GASKET 1-520-2 SCREEN 1-520-3 BOWL 1-2298 GROMMET 1-2612 CLIP 1-520-4 SUPPORT ASSEMBLY 1-520 GASCOLATOR ASSEMBLY 3-464 BOARD FUEL TANK 50F ELBOW 3/8”T x 1/4”P 49F ELBOW 5/16”T x 1/4”P 1-666-2 LINE GASCOLATOR TO CARBURETOR 1-2403 VALVE FUEL SHUT OFF
28
