Page 27 - Aeronca 7A Interactive Service Manual

U3-428 SPRING ASSEMBLY AN7-12 BOLT AN310-7 NUT 2077 BRACKET ASSEMBLY 3001 FORK 1865 HUB AND BEARING ASSEMBLY 1871 WHEEL ASSEMBLY

2622 RUDDER ARM AN3-13A BOLT MS21044N3 NUT AN364-720 NUT U2346A WASHER U2085A SHIM U1800A BUSHING 1871 CAP – BUSHING

U1-555 FITTING
U3-433-1 OLEO STRUT ASSEMBLY U1-557-1 PAD U1-542-1 END FITTING AN4-16 BOLT U1-557-2 PAD AN310-4 NUT 1865 CAST HUB ASSEMBLY 1879 TIRE

U1-318 PISTON U3-433-22 BUSHING 2609 SPRING 1744 AXLE ASSEMBLY KIT

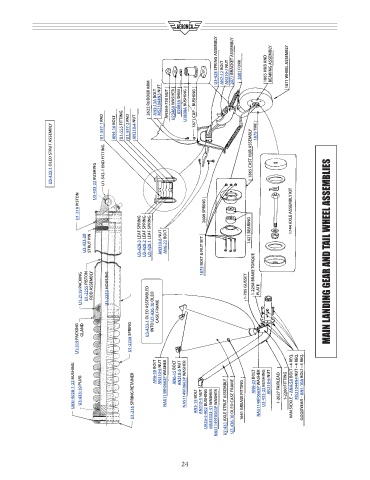

U3-433-20 STRUT PIN U3-428-3 LEAF SPRING U3-428-2 LEAF SPRING U3-428-1 LEAF SPRING AN310-6 NUT AN6-22 BOLT 1875 BOLT & NUT SET 1421 BEARING MAIN LANDING GEAR AND TAIL WHEEL ASSEMBLIES

U1-2119 PACKING U1-2255 PISTON ROD ASSEMBLY U1-2253 HOUSING U3-433-1 OLEO ASSEMBLED INTO U7-436-10 OLEO CASE FRAME 1-705 GUSSET 1-2258 BRAKE TORQUE PLATE

U1-319 PACKING GLAND U1-2256 SPRING

UASI-5028-1-22 BUSHING U3-433-10 PLUG U1-316 SPRING RETAINER AN6-30 BOLT AN310-6 NUT NAS1149F0663P WASHER AN6-15 BOLT AN310-6 NUT NAS1149F0663P WASHER AN5-15 BOLT AN310-5 NUT UAS5-5-902 BUSHING MS35333-41 WASHER NAS1149F0563P WASHER U7-451 AXLE STRUT ASSEMBLY U7-436-10 OLEO CASE FRAME 1641 GREASE FITTING AN6-23 BOLT NAS1149F0663P WASHER U3-433-22 BUSHING AN310-6 NUT 1-2627 FAIRLEAD 1-2260 FITTING VAN SICKLE – AN4-5A BOLT • 4 REQ. MS21044N4

24
