A31140 CABLE CLIP

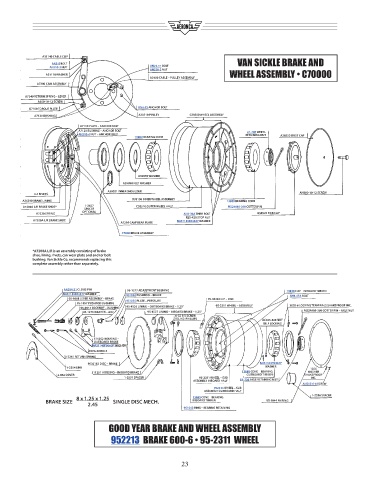

AN3-5 BOLT VAN SICKLE BRAKE AND
AN310-3 NUT AN23-11 BOLT
AN320-3 NUT
A31170 WASHER WHEEL ASSEMBLY • C70000
A7400 CABLE – PULLEY ASSEMBLY
A7300 CAM ASSEMBLY
A7340 RETURN SPRING – LEVER
A500-10-12 SCREW
B7100 TORQUE PLATE AN4-15 ANCHOR BOLT
A7130 BUSHING A30510 PULLEY C38500 WHEEL ASSEMBLY
A7110 PLATE – ANCHOR BOLT
A7120 BUSHING – ANCHOR BOLT U1-706 WHEEL
AN310-4 NUT – ANCHOR BOLT RETAINING NUT A38550 DUST CAP
13889 BEARING CONE

A39070 WASHER
A39090 FELT WASHER
A39021 INNER SHOULDER
4-4 RIVETS AN500-10-12 SCREW
B38100 INNER WHEEL ASSEMBLY
A36590 BRAKE LINING 13889 BEARING CONE
A7200A L/R BRAKE SHOE* 1-2637 C38510 OUTER WHEEL HALF MS24665-360 COTTER PIN
SPACER
OPTIONAL
A7220 SPRING AN4-36A THRU BOLT A38520 HUB CAP
R2S-428 STOP NUT
A7200A L/R BRAKE SHOE NAS1149F0463P WASHER
A7210 CAM WEAR PLATE
C7000 BRAKE ASSEMBLY
*A7200A L/R is an assembly consisting of brake
shoe, lining, rivets, can wear plate and anchor bolt
bushing. Van Sickle Co. recommends replacing this
complete assembly rather than separately.

AN394-21 CLEVIS PIN 95-1277 ADJUSTMENT BUSHING 13830 CUP – INBOARD TIMKEN
NAS1149F0432P WASHER 951056 PUSHROD – BRAKE AN4-47A BOLT
95-1058 LEVER ASSEMBLY – BRAKE 951055 PLATE – PRESSURE 95-3348 CLIP – DISC
95-1057 PUSHROD BUSHING 95-2311 WHEEL – ASSEMBLY 3028-6 LOCKING TERMINALS SHAKEPROOF INC.
95-0914 LOCKNUT – BUSHING 95-4526 LINING – OUTBOARD BRAKE – 1.25”
95-1279 WASHER – ADJ 95-4527 LINING – INBOARD BRAKE – 1.25” MS24668-360 COTTER PIN – AXLE NUT
6-32 1/4 SCREW
RD. HD. PHILLIPS AC365-428 NUT
SELF LOCKING

511252 HOUSING –
OUTBOARD BRAKE
NAS1149F0663P WASHER
AN76-20 BOLT
1-2261 RETURN SPRING
9530183 DISC – BRAKE NAS1149F0432P
1-2354 LINK WASHER 1026
511251 HOUSING – INBOARD BRAKE 13889 CONE – BEARING WASHER
2-864 COVER OUTBOARD TIMKEN SHAKEPROOF
1-2557 SPACER 95-2391 WHEEL – SUB INC.
ASSEMBLY INBOARD HALF U1-706 AXLE RETAINING NUT
AN515-6-4 SCREW
952313 WHEEL – SUB
ASSEMBLY OUTBOARD HALF
1-2556 SPACER
8 x 1.25 x 1.25 13889 CONE – BEARING
BRAKE SIZE 2.45 SINGLE DISC MECH. INBOARD TIMKEN 95-1044 FAIRING
951043 RING – BEARING RETAINING
GOOD YEAR BRAKE AND WHEEL ASSEMBLY
952213 BRAKE 600-6 • 95-2311 WHEEL

23
