Page 29 - Aeronca 7A Interactive Service Manual

U1-2322 U1-2552
AN503-8-8 4-562-1 NAS41-2-25
NAS40-4A-LL-25

U4-562 ELEVATOR TRIM TAB

NAS40-4A-TT-25
AN520-8-14 MS20470AD3-4 • 10 REQ.
AN365-836 AN430AD3-6
NAS1149FN816P AN430AD4-8
AN430AD4-10

ASI-6058-0-12
AN4-10 BOLT
4-551-2 2-704-2 AN310-4 NUT 2-704-2
2-704-1 2-807 4-544-3 4-544-4 2-704-1
4-551-2
4-544-1

4-543-1 4-543-3 4-543-2 4-544-2 ASI-6083-0-22 • 2 REQ.
1-2537 1-2313 MS20392-3C71
ASI-6083-0-22 AN380-2-2
MS20392-3C71
AN380-2-2
-4-544 LEFT ELEVATOR
-4-543 RIGHT ELEVATOR

ASI-8058-0-8
2-704-3 ASI-6083-0-22 • 4 REQ.
2-684-1
2-684-4 ASI-5058-1-0

4-545-2 4-542-1
2-704-1

2-684-3
4-542-2
2-684-2
ASI-6083-0-22
MS20392-3C71 AN3-13
AN380-2-2 2-704-2 AN310-3
AN380-2-2

7-539
4-545-1 4-542 STABILIZER

1-2360

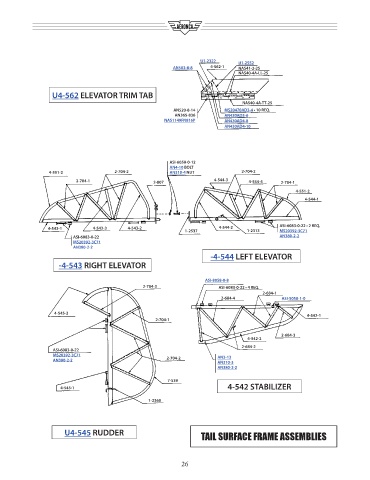

U4-545 RUDDER TAIL SURFACE FRAME ASSEMBLIES

26
