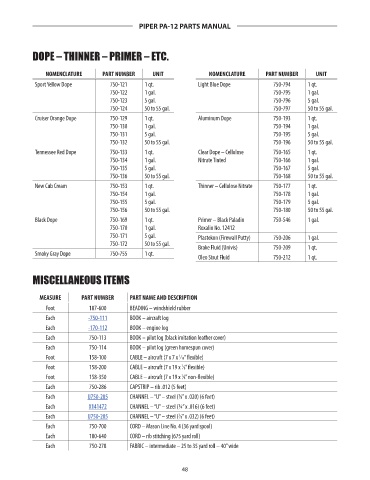

PIPER PA-12 PARTS MANUAL

DOPE – THINNER – PRIMER – ETC.

NOMENCLATURE PART NUMBER UNIT NOMENCLATURE PART NUMBER UNIT
Sport Yellow Dope 750-121 1 qt. Light Blue Dope 750-794 1 qt.
750-122 1 gal. 750-795 1 gal.
750-123 5 gal. 750-796 5 gal.
750-124 50 to 55 gal. 750-797 50 to 55 gal.
Cruiser Orange Dope 750-129 1 qt. Aluminum Dope 750-193 1 qt.
750-130 1 gal. 750-194 1 gal.
750-131 5 gal. 750-195 5 gal.
750-132 50 to 55 gal. 750-196 50 to 55 gal.
Tennessee Red Dope 750-133 1 qt. Clear Dope – Cellulose 750-165 1 qt.
750-134 1 gal. Nitrate Tinted 750-166 1 gal.
750-135 5 gal. 750-167 5 gal.
750-136 50 to 55 gal. 750-168 50 to 55 gal.
New Cub Cream 750-153 1 qt. Thinner – Cellulose Nitrate 750-177 1 qt.
750-154 1 gal. 750-178 1 gal.
750-155 5 gal. 750-179 5 gal.
750-156 50 to 55 gal. 750-180 50 to 55 gal.
Black Dope 750-169 1 qt. Primer – Black Paladin 750-546 1 gal.
750-170 1 gal. Roxalin No. 12412
750-171 5 gal. Plastekon (Firewall Putty) 750-206 1 gal.
750-172 50 to 55 gal. Brake Fluid (Univis) 750-209 1 qt.

Smoky Gray Dope 750-755 1 qt.
Oleo Strut Fluid 750-212 1 qt.

MISCELLANEOUS ITEMS

MEASURE PART NUMBER PART NAME AND DESCRIPTION PRICE

Foot 187-600 BEADING – windshield rubber NM!
Each -750-111 BOOK – aircraft log 25.25
Each -170-112 BOOK – engine log 33.54
Each 750-113 BOOK – pilot log (black imitation leather cover) NM!
Each 750-114 BOOK – pilot log (green homespun cover) NM!
1
Foot 158-100 CABLE – aircraft (7 x 7 x ⁄16” flexible) NM!
Foot 158-200 CABLE – aircraft (7 x 19 x ⁄8” flexible) NM!
1
Foot 158-350 CABLE – aircraft (7 x 19 x ⁄8” non-flexible) NM!
1
Each 750-286 CAPSTRIP – rib .012 (5 feet) NM!
Each U750-285 CHANNEL – “U” – steel ( ⁄8” x .020) (6 feet) 11.67
3
Each X141472 CHANNEL – “U” – steel (¼” x .016) (6 feet) 8.26
Each U750-285 CHANNEL – “U” – steel ( ⁄8” x .032) (6 feet) 11.67
3
Each 750-700 CORD – Mason Line No. 4 (36 yard spool) NM!
Each 180-640 CORD – rib stitching (675 yard roll) NM!
Each 750-278 FABRIC – intermediate – 25 to 35 yard roll – 40” wide NM!

48
