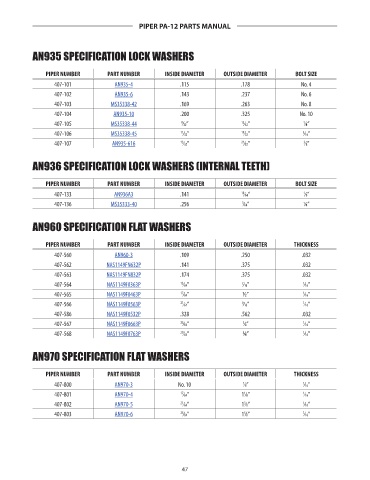

PIPER PA-12 PARTS MANUAL
AN935 SPECIFICATION LOCK WASHERS
PIPER NUMBER PART NUMBER INSIDE DIAMETER OUTSIDE DIAMETER BOLT SIZE
407-101 AN935-4 .115 .178 No. 4
407-102 AN935-6 .143 .237 No. 6
407-103 MS35338-42 .169 .263 No. 8
407-104 AN935-10 .200 .325 No. 10
407-105 MS35338-44 9 ⁄32” 15 ⁄32” ¼”
407-106 MS35338-45 11 ⁄32” 19 ⁄32” 5 ⁄16”
407-107 AN935-616 13 ⁄32” 21 ⁄32” 3 ⁄8”
AN936 SPECIFICATION LOCK WASHERS (INTERNAL TEETH)
PIPER NUMBER PART NUMBER INSIDE DIAMETER OUTSIDE DIAMETER BOLT SIZE
407-133 AN936A3 .141 19 ⁄64” 1 ⁄8”
407-136 MS35333-40 .256 3 ⁄64” ¼”
AN960 SPECIFICATION FLAT WASHERS
PIPER NUMBER PART NUMBER INSIDE DIAMETER OUTSIDE DIAMETER THICKNESS
407-560 AN960-3 .109 .250 .032
407-562 NAS1149FN632P .141 .375 .032
407-563 NAS1149FN832P .174 .375 .032
407-564 NAS1149F0363P 13 ⁄64” 7 ⁄16” 1 ⁄16”
407-565 NAS1149F0463P 17 ⁄64” ½” 1 ⁄16”
407-566 NAS1149F0563P 21 ⁄64” 9 ⁄16” 1 ⁄16”
407-586 NAS1149F0532P .328 .562 .032
407-567 NAS1149F0663P 25 ⁄64” 5 ⁄8” 1 ⁄16”
407-568 NAS1149F0763P 29 ⁄64” ¾” 1 ⁄16”
AN970 SPECIFICATION FLAT WASHERS
PIPER NUMBER PART NUMBER INSIDE DIAMETER OUTSIDE DIAMETER THICKNESS
407-800 AN970-3 No. 10 7 ⁄8” 1 ⁄16”
407-801 AN970-4 17 ⁄64” 1 ⁄8” 1 ⁄16”
1
407-802 AN970-5 21 ⁄64” 1 ⁄8” 1 ⁄16”
3
5
407-803 AN970-6 25 ⁄64” 1 ⁄8” 1 ⁄16”
47
