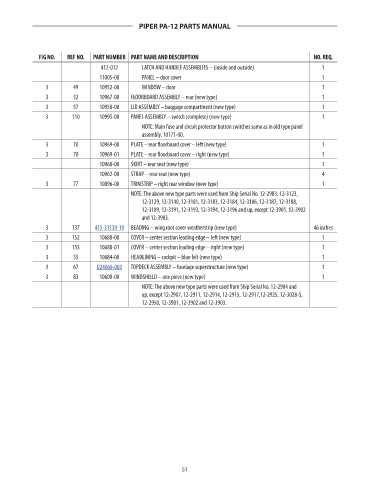

PIPER PA-12 PARTS MANUAL

FIG NO. REF NO. PART NUMBER PART NAME AND DESCRIPTION NO. REQ. PRICE
412-012 LATCH AND HANDLE ASSEMBLIES – (inside and outside) 1 NM!
11005-00 PANEL – door cover 1 NM!
3 49 10952-00 WINDOW – door 1 NM!
3 52 10967-00 FLOORBOARD ASSEMBLY – rear (new type) 1 NM!
3 57 10958-00 LID ASSEMBLY – baggage compartment (new type) 1 NM!
3 110 10995-00 PANEL ASSEMBLY – switch (complete) (new type) 1 NM!
NOTE: Main fuse and circuit protector button switches same as in old type panel X
assembly, 10171-00.
3 70 10969-00 PLATE – rear floorboard cover – left (new type) 1 NM!
3 70 10969-01 PLATE – rear floorboard cover – right (new type) 1 NM!
10968-00 SKIRT – rear seat (new type) 1 NM!
10962-00 STRAP – rear seat (new type) 4 NM!
3 77 10896-00 TRIMSTRIP – right rear window (new type) 1 NM!
NOTE: The above new type parts were used from Ship Serial No. 12-2983, 12-3123, X
12-3129, 12-3140, 12-3181, 12-3183, 12-3184, 12-3186, 12-3187, 12-3188,
12-3189, 12-3191, 12-3193, 12-3194, 12-3196 and up, except 12-3901, 12-3902
and 12-3903.
3 137 415-31130-10 BEADING – wing root cover weatherstrip (new type) 46 inches 38.04
3 152 10688-00 COVER – center section leading edge – left (new type) 1 NM!
3 153 10688-01 COVER – center section leading edge – right (new type) 1 NM!
3 55 10684-00 HEADLINING – cockpit – blue felt (new type) 1 NM!
3 67 U24066-003 TOPDECK ASSEMBLY – fuselage superstructure (new type) 1 2658.33
3 83 10600-00 WINDSHIELD – one piece (new type) 1 NM!
NOTE: The above new type parts were used from Ship Serial No. 12-2904 and X
up, except 12-2907, 12-2911, 12-2914, 12-2915, 12-2917,12-2925, 12-3028-S,
12-2950, 12-3901, 12-3902 and 12-3903.
