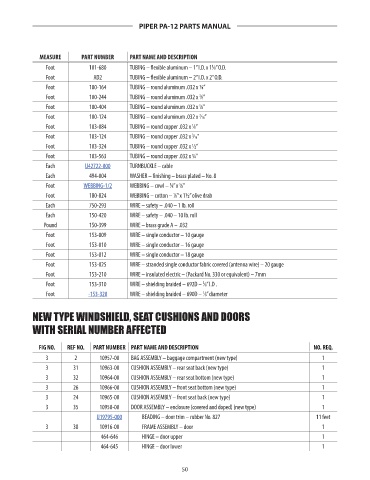

PIPER PA-12 PARTS MANUAL

MEASURE PART NUMBER PART NAME AND DESCRIPTION PRICE
1
Foot 101-680 TUBING – flexible aluminum – 1” I.D. x 1 ⁄8” O.D. NM!
Foot AD2 TUBING – flexible aluminum – 2” I.D. x 2” O.D. NM!
Foot 100-164 TUBING – round aluminum .032 x ¼” NM!
Foot 100-244 TUBING – round aluminum .032 x ⁄8” NM!
3
Foot 100-404 TUBING – round aluminum .032 x ⁄8” NM!
5
Foot 100-124 TUBING – round aluminum .032 x ⁄16” NM!
3
Foot 103-084 TUBING – round copper .032 x ⁄8” NM!
1
Foot 103-124 TUBING – round copper .032 x ⁄16” NM!
3
Foot 103-324 TUBING – round copper .032 x ½” NM!
Foot 103-563 TUBING – round copper .032 x ¼” NM!
Each U42722-000 TURNBUCKLE – cable 143.05
Each 494-004 WASHER – finishing – brass plated – No. 8 NM!

5
1
Foot WEBBING-1/2 WEBBING – cowl – ⁄8” x ⁄8” 0.8
Foot 180-824 WEBBING – cotton – ⁄8” x 1½” olive drab NM!
1
Each 750-293 WIRE – safety – .040 – 1 lb. roll NM!
Each 150-420 WIRE – safety – .040 – 10 lb. roll NM!
Pound 150-399 WIRE – brass grade A – .032 NM!
Foot 153-009 WIRE – single conductor – 10 gauge NM!
Foot 153-010 WIRE – single conductor – 16 gauge NM!
Foot 153-012 WIRE – single conductor – 18 gauge NM!
Foot 153-025 WIRE – stranded single conductor fabric covered (antenna wire) – 20 gauge NM!
Foot 153-210 WIRE – insulated electric – (Packard No. 330 or equivalent) – 7mm NM!
Foot 153-310 WIRE – shielding braided – 692D – ⁄8” I.D . NM!
3
Foot -153-320 WIRE – shielding braided – 690D – ⁄8” diameter 1.62
1

NEW TYPE WINDSHIELD, SEAT CUSHIONS AND DOORS
WITH SERIAL NUMBER AFFECTED

FIG NO. REF NO. PART NUMBER PART NAME AND DESCRIPTION NO. REQ. PRICE
3 2 10957-00 BAG ASSEMBLY – baggage compartment (new type) 1 NM!
3 31 10963-00 CUSHION ASSEMBLY – rear seat back (new type) 1 NM!
3 32 10964-00 CUSHION ASSEMBLY – rear seat bottom (new type) 1 NM!
3 26 10966-00 CUSHION ASSEMBLY – front seat bottom (new type) 1 NM!
3 24 10965-00 CUSHION ASSEMBLY – front seat back (new type) 1 NM!
3 35 10950-00 DOOR ASSEMBLY – enclosure (covered and doped) (new type) 1 NM!
U19795-000 BEADING – door trim – rubber No. 827 11 feet 27.08
3 38 10916-00 FRAME ASSEMBLY – door 1 NM!
464-646 HINGE – door upper 1 NM!
464-645 HINGE – door lower 1 NM!

50
