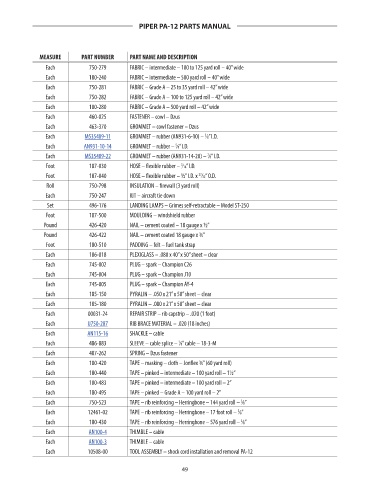

PIPER PA-12 PARTS MANUAL

MEASURE PART NUMBER PART NAME AND DESCRIPTION PRICE
Each 750-279 FABRIC – intermediate – 100 to 125 yard roll – 40” wide NM!
Each 180-240 FABRIC – intermediate – 500 yard roll – 40” wide NM!
Each 750-281 FABRIC – Grade A – 25 to 35 yard roll – 42” wide NM!
Each 750-282 FABRIC – Grade A – 100 to 125 yard roll – 42” wide NM!
Each 180-280 FABRIC – Grade A – 500 yard roll – 42” wide NM!
Each 460-025 FASTENER – cowl – Dzus NM!
Each 463-370 GROMMET – cowl fastener – Dzus NM!
Each MS35489-11 GROMMET – rubber (AN931-6-10) – ⁄8” I.D. 0.6
3
5
Each AN931-10-14 GROMMET – rubber – ⁄8” I.D. 2
7
Each MS35489-22 GROMMET – rubber (AN931-14-20) – ⁄8” I.D. 2.34
Foot 187-030 HOSE – flexible rubber – ⁄16” I.D. NM!
3
Foot 187-040 HOSE – flexible rubber – ½” I.D. x ⁄32” O.D. NM!
27
Roll 750-798 INSULATION – firewall (3 yard roll) NM!
Each 750-247 KIT – aircraft tie down NM!
Set 496-176 LANDING LAMPS – Grimes self-retractable – Model ST-250 NM!
Foot 187-500 MOULDING – windshield rubber NM!
Pound 426-420 NAIL – cement coated – 18 gauge x ½” NM!
Pound 426-422 NAIL – cement coated 18 gauge x ¾” NM!
Foot 180-510 PADDING – felt – fuel tank strap NM!
Each 186-018 PLEXIGLASS – .080 x 40” x 50” sheet – clear NM!
Each 745-002 PLUG – spark – Champion C26 NM!
Each 745-004 PLUG – spark – Champion J10 NM!
Each 745-005 PLUG – spark – Champion AY-4 NM!
Each 185-150 PYRALIN – .050 x 21” x 50” sheet – clear NM!
Each 185-180 PYRALIN – .080 x 21” x 50” sheet – clear NM!
Each 00031-24 REPAIR STRIP – rib capstrip – .020 (1 foot) NM!
Each U750-287 RIB BRACE MATERIAL – .020 (18 inches) 14.5
Each AN115-16 SHACKLE – cable 22.5
1
Each 486-883 SLEEVE – cable splice – ⁄8” cable – 18-3-M NM!
Each 487-262 SPRING – Dzus fastener NM!
Each 180-420 TAPE – masking – cloth – Jonflex ¾” (60 yard roll) NM!
Each 180-440 TAPE – pinked – intermediate – 100 yard roll – 1½” NM!
Each 180-483 TAPE – pinked – intermediate – 100 yard roll – 2” NM!
Each 180-495 TAPE – pinked – Grade A – 100 yard roll – 2” NM!
Each 750-523 TAPE – rib reinforcing – Herringbone – 144 yard roll – ⁄8” NM!
3
Each 12461-02 TAPE – rib reinforcing – Herringbone – 17 foot roll – ⁄8” NM!
3
Each 180-430 TAPE – rib reinforcing – Herringbone – 576 yard roll – ⁄8” NM!
3
Each AN100-4 THIMBLE – cable 0.34
Each AN100-3 THIMBLE – cable 0.4
Each 10508-00 TOOL ASSEMBLY – shock cord installation and removal PA-12 NM!

49
