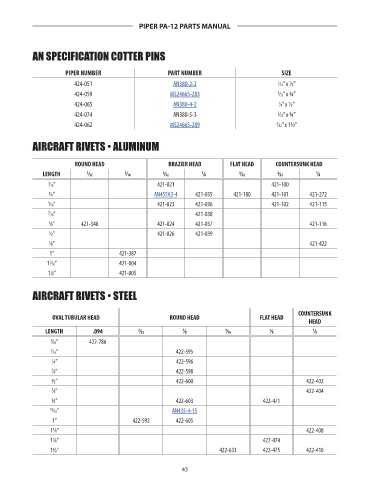

PIPER PA-12 PARTS MANUAL

AN SPECIFICATION COTTER PINS

PIPER NUMBER PART NUMBER SIZE
424-051 AN380-2-2 1 ⁄16” x ½”
424-059 MS24665-283 3 ⁄32” x ¾”

424-065 AN380-4-2 1 ⁄8” x ½”
424-074 AN380-5-3 5 ⁄32” x ¾”
424-062 MS24665-289 3 ⁄32” x 1½”

AIRCRAFT RIVETS • ALUMINUM

ROUND HEAD BRAZIER HEAD FLAT HEAD COUNTERSUNK HEAD
LENGTH 3 ⁄32 3 ⁄16 3 ⁄32 1 ⁄8 3 ⁄32 3 ⁄32 1 ⁄8
3 ⁄16” 421-021 421-100
¼” AN455A3-4 421-035 421-180 421-101 421-272
5 ⁄16” 421-023 421-036 421-102 421-115
7 ⁄16” 421-038
3 ⁄8” 421-340 421-024 421-037 421-116
½” 421-026 421-039

5 ⁄8” 421-422
1” 421-387

1 ⁄16” 421-004
1
1
1 ⁄8” 421-005
AIRCRAFT RIVETS • STEEL

COUNTERSUNK
OVAL TUBULAR HEAD ROUND HEAD FLAT HEAD
HEAD
LENGTH .094 3 ⁄32 1 ⁄8 3 ⁄16 1 ⁄8 1 ⁄8
9 ⁄64” 422-786
3 ⁄16” 422-595
¼” 422-596
3 ⁄8” 422-598
½” 422-600 422-402
5 ⁄8” 422-404
¾” 422-603 422-471
15 ⁄16” AN435-4-15
1” 422-592 422-605
1 ⁄8” 422-408
1
1¼” 422-474
1½” 422-633 422-475 422-410
