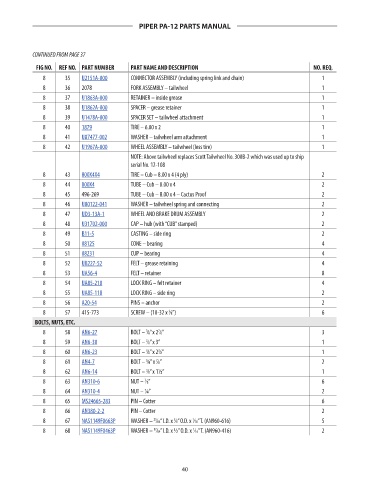

PIPER PA-12 PARTS MANUAL

CONTINUED FROM PAGE 37

FIG NO. REF NO. PART NUMBER PART NAME AND DESCRIPTION NO. REQ. PRICE
8 35 U2151A-000 CONNECTOR ASSEMBLY (including spring link and chain) 1 80.82
8 36 2078 FORK ASSEMBLY – tailwheel 1 NM!
8 37 U1863A-000 RETAINER – inside grease 1 9.77
8 38 U1862A-000 SPACER – grease retainer 1 11.19
8 39 U1478A-000 SPACER SET – tailwheel attachment 1 86.25
8 40 1879 TIRE – 6.00 x 2 1 99.15
8 41 U87477-002 WASHER – tailwheel arm attachment 1 122.83

8 42 U1967A-000 WHEEL ASSEMBLY – tailwheel (less tire) 1 520.96
NOTE: Above tailwheel replaces Scott Tailwheel No. 300B-2 which was used up to ship X
serial No. 12-108
8 43 800X4X4 TIRE – Cub – 8.00 x 4 (4 ply) 2 593.12
8 44 800X4 TUBE – Cub – 8.00 x 4 2 272.42
8 45 496-269 TUBE – Cub – 8.00 x 4 – Cactus Proof 2 NM!
8 46 U80122-041 WASHER – tailwheel spring and connecting 2 13.35
8 47 UD3-13A-1 WHEEL AND BRAKE DRUM ASSEMBLY 2 1895.3
8 48 U31702-000 CAP – hub (with “CUB” stamped) 2 41.8
8 49 B11-5 CASTING – side ring 2 60.23
8 50 08125 CONE – bearing 4 49.98
8 51 08231 CUP – bearing 4 31.18

8 52 UB227-52 FELT – grease retaining 4 1.54
8 53 UA56-4 FELT – retainer 8 9.23
8 54 UA85-218 LOCK RING – felt retainer 4 33.02
8 55 UA85-118 LOCK RING – side ring 2 22
8 56 A20-54 PINS – anchor 2 21.55
3
8 57 415-773 SCREW – (10-32 x ⁄8”) 6 NM!
BOLTS, NUTS, ETC. X
8 58 AN6-27 BOLT – ⁄8” x 2 ⁄8” 3 1.46
7
3
3
8 59 AN6-30 BOLT – ⁄8” x 3” 1 1.5
3
8 60 AN6-23 BOLT – ⁄8” x 2 ⁄8” 1 1
3
8 61 AN4-7 BOLT – ¼” x ⁄8” 2 0.58
7
8 62 AN6-14 BOLT – ⁄8” x 1½” 1 1.44
3
8 63 AN310-6 NUT – ⁄8” 6 1.8
3
8 64 AN310-4 NUT – ¼” 2 1.6
8 65 MS24665-283 PIN – Cotter 6 0.04
8 66 AN380-2-2 PIN – Cotter 2 0.04
8 67 NAS1149F0663P WASHER – ⁄64” I.D. x ⁄8” O.D. x ⁄16” T. (AN960-616) 5 0.11
1
25
5
1
17
8 68 NAS1149F0463P WASHER – ⁄64” I.D. x ½” O.D. x ⁄16” T. (AN960-416) 2 0.06
