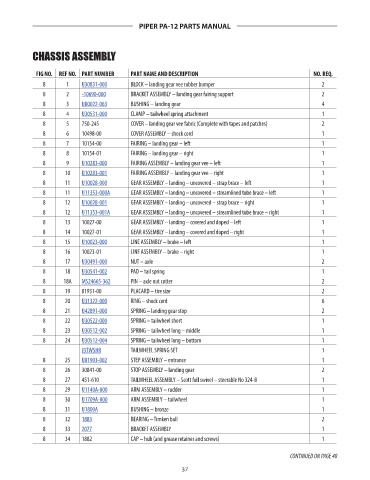

PIPER PA-12 PARTS MANUAL

CHASSIS ASSEMBLY

FIG NO. REF NO. PART NUMBER PART NAME AND DESCRIPTION NO. REQ. PRICE
8 1 U30831-000 BLOCK – landing gear vee rubber bumper 2 17.07

8 2 -10690-000 BRACKET ASSEMBLY – landing gear fairing support 2 96.33
8 3 U80022-063 BUSHING – landing gear 4 13.19
8 4 U30531-000 CLAMP – tailwheel spring attachment 1 31.59
8 5 750-245 COVER – landing gear vee fabric (Complete with tapes and patches) 2 NM!
8 6 10498-00 COVER ASSEMBLY – shock cord 1 NM!
8 7 10154-00 FAIRING – landing gear – left 1 NM!
8 8 10154-01 FAIRING – landing gear – right 1 NM!
8 9 U10283-000 FAIRING ASSEMBLY – landing gear vee – left 1 465.38
8 10 U10283-001 FAIRING ASSEMBLY – landing gear vee – right 1 465.38
8 11 U10028-000 GEAR ASSEMBLY – landing – uncovered – strap brace – left 1 1704.16
8 11 U11353-000A GEAR ASSEMBLY – landing – uncovered – streamlined tube brace – left 1 1831.68
8 12 U10028-001 GEAR ASSEMBLY – landing – uncovered – strap brace – right 1 1704.16
8 12 U11353-001A GEAR ASSEMBLY – landing – uncovered – streamlined tube brace – right 1 1831.68
8 13 10027-00 GEAR ASSEMBLY – landing – covered and doped – left 1 NM!
8 14 10027-01 GEAR ASSEMBLY – landing – covered and doped – right 1 NM!
8 15 U10023-000 LINE ASSEMBLY – brake – left 1 54.96
8 16 10023-01 LINE ASSEMBLY – brake – right 1 NM!
8 17 U30491-000 NUT – axle 2 77.13
8 18 U30541-002 PAD – tail spring 1 11.38
8 18A MS24665-362 PIN – axle nut cotter 2 0.11
8 19 81931-00 PLACARD – tire size 2 NM!
8 20 U31322-000 RING – shock cord 6 54.97
8 21 U42891-000 SPRING – landing gear stop 2 7.53
8 22 U30522-000 SPRING – tailwheel short 1 51.07
8 23 U30512-002 SPRING – tailwheel long – middle 1 71.23
8 24 U30512-004 SPRING – tailwheel long – bottom 1 63.68
J3TWSHR TAILWHEEL SPRING SET 1 190.64
8 25 U81903-002 STEP ASSEMBLY – entrance 1 284.87

8 26 30841-00 STOP ASSEMBLY – landing gear 2 NM!
8 27 451-610 TAILWHEEL ASSEMBLY – Scott full swivel – steerable No 324-B 1 NM!
8 29 U1140A-000 ARM ASSEMBLY – rudder 1 218.93
8 30 U1709A-000 ARM ASSEMBLY – tailwheel 1 520.97
8 31 U1800A BUSHING – bronze 1 65.27
8 32 1883 BEARING – Timken ball 2 99.94
8 33 2077 BRACKET ASSEMBLY 1 350.48
8 34 1882 CAP – hub (and grease retainer and screws) 1 NM!

CONTINUED ON PAGE 40

37
