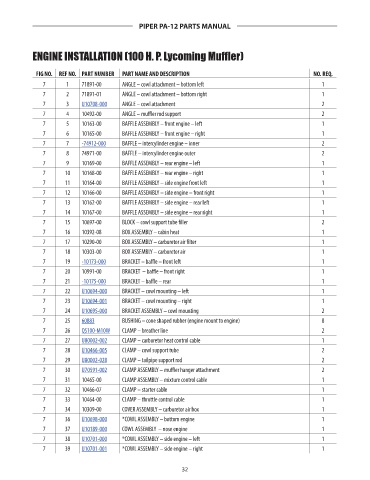

PIPER PA-12 PARTS MANUAL
ENGINE INSTALLATION (100 H. P. Lycoming Muffler)
FIG NO. REF NO. PART NUMBER PART NAME AND DESCRIPTION NO. REQ. PRICE
7 1 71891-00 ANGLE – cowl attachment – bottom left 1 NM!
7 2 71891-01 ANGLE – cowl attachment – bottom right 1 NM!
7 3 U10708-000 ANGLE – cowl attachment 2 18.7
7 4 10492-00 ANGLE – muffler rod support 2 NM!
7 5 10163-00 BAFFLE ASSEMBLY – front engine – left 1 NM!
7 6 10165-00 BAFFLE ASSEMBLY – front engine – right 1 NM!
7 7 -74912-000 BAFFLE – intercylinder engine – inner 2 44.85
7 8 74971-00 BAFFLE – intercylinder engine outer 2 NM!
7 9 10169-00 BAFFLE ASSEMBLY – rear engine – left 1 NM!
7 10 10168-00 BAFFLE ASSEMBLY – rear engine – right 1 NM!
7 11 10164-00 BAFFLE ASSEMBLY – side engine front left 1 NM!
7 12 10166-00 BAFFLE ASSEMBLY – side engine – front right 1 NM!
7 13 10162-00 BAFFLE ASSEMBLY – side engine – rear left 1 NM!
7 14 10167-00 BAFFLE ASSEMBLY – side engine – rear right 1 NM!
7 15 10697-00 BLOCK – cowl support tube filler 2 NM!
7 16 10392-08 BOX ASSEMBLY – cabin heat 1 NM!
7 17 10290-00 BOX ASSEMBLY – carburetor air filter 1 NM!
7 18 10303-00 BOX ASSEMBLY – carburetor air 1 NM!
7 19 -10173-000 BRACKET – baffle – front left 1 16.57
7 20 10991-00 BRACKET – baffle – front right 1 NM!
7 21 -10175-000 BRACKET – baffle – rear 1 66.13
7 22 U10694-000 BRACKET – cowl mounting – left 1 202.77
7 23 U10694-001 BRACKET – cowl mounting – right 1 202.77
7 24 U10695-000 BRACKET ASSEMBLY – cowl mounting 2 116.21
7 25 60883 BUSHING – cone shaped rubber (engine mount to engine) 8 27.62
7 26 QS100-M10W CLAMP – breather line 2 4.65
7 27 U80002-002 CLAMP – carburetor heat control cable 1 34.32
7 28 U10466-005 CLAMP – cowl support tube 2 20.73
7 29 U80002-028 CLAMP – tailpipe support rod 2 25.91
7 30 U70591-002 CLAMP ASSEMBLY – muffler hanger attachment 2 34.61
7 31 10465-00 CLAMP ASSEMBLY – mixture control cable 1 NM!
7 32 10466-07 CLAMP – starter cable 1 NM!
7 33 10464-00 CLAMP – throttle control cable 1 NM!
7 34 10309-00 COVER ASSEMBLY – carburetor air box 1 NM!
7 36 U10698-000 *COWL ASSEMBLY – bottom engine 1 349.16
7 37 U10189-000 COWL ASSEMBLY – nose engine 1 1933.47
7 38 U10701-000 *COWL ASSEMBLY – side engine – left 1 549.91
7 39 U10701-001 *COWL ASSEMBLY – side engine – right 1 582.34
32
