P. 37

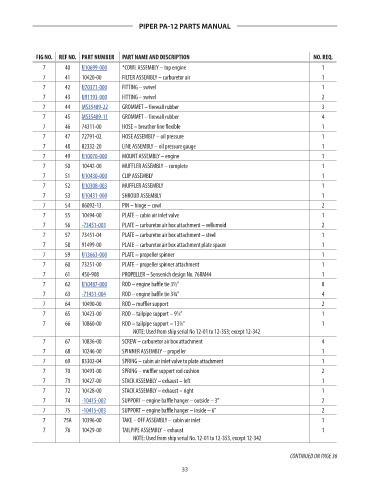

PIPER PA-12 PARTS MANUAL
FIG NO. REF NO. PART NUMBER PART NAME AND DESCRIPTION NO. REQ. PRICE
7 40 U10699-000 *COWL ASSEMBLY – top engine 1 209.51
7 41 10420-00 FILTER ASSEMBLY – carburetor air 1 NM!
7 42 U70371-000 FITTING – swivel 1 56.83
7 43 U91193-000 FITTING – swivel 2 20.67
7 44 MS35489-22 GROMMET – firewall rubber 3 2.34
7 45 MS35489-11 GROMMET – firewall rubber 4 0.6
7 46 74311-00 HOSE – breather line flexible 1 NM!
7 47 72791-02 HOSE ASSEMBLY – oil pressure 1 NM!
7 48 82332-20 LINE ASSEMBLY – oil pressure gauge 1 NM!
7 49 U10070-000 MOUNT ASSEMBLY – engine 1 1286.61
7 50 10442-00 MUFFLER ASSEMBLY – complete 1 NM!
7 51 U10430-000 CLIP ASSEMBLY 1 71.23
7 52 U10308-003 MUFFLER ASSEMBLY 1 2125.17
7 53 U10431-000 SHROUD ASSEMBLY 1 562.27
7 54 86092-13 PIN – hinge – cowl 2 NM!
7 55 10494-00 PLATE – cabin air inlet valve 1 NM!
7 56 -73451-003 PLATE – carburetor air box attachment – vellumoid 2 9.99
7 57 73451-04 PLATE – carburetor air box attachment – steel 1 NM!
7 58 91499-00 PLATE – carburetor air box attachment plate spacer 1 NM!
7 59 U13663-000 PLATE – propeller spinner 1 183.48
7 60 73251-00 PLATE – propeller spinner attachment 1 NM!
7 61 450-908 PROPELLER – Sensenich design No. 76RM44 1 NM!
7 62 U10487-000 ROD – engine baffle tie 3½” 8 19.55
7 63 -71451-004 ROD – engine baffle tie 3¾” 4 21.28
7 64 10490-00 ROD – muffler support 2 NM!
7
7 65 10423-00 ROD – tailpipe support – 9 ⁄8” 1 NM!
7 66 10860-00 ROD – tailpipe support – 13 ⁄8” 1 NM!
3
NOTE: Used from ship serial No 12-01 to 12-353; except 12-342
7 67 10836-00 SCREW – carburetor air box attachment 4 NM!
7 68 10246-00 SPINNER ASSEMBLY – propeller 1 NM!
7 69 83302-04 SPRING – cabin air inlet valve to plate attachment 1 NM!
7 70 10493-00 SPRING – muffler support rod cushion 2 NM!
7 71 10427-00 STACK ASSEMBLY – exhaust – left 1 NM!
7 72 10428-00 STACK ASSEMBLY – exhaust – right 1 NM!
7 74 -10415-002 SUPPORT – engine baffle hanger – outside – 3” 2 34.26
7 75 -10415-003 SUPPORT – engine baffle hanger – inside – 6” 2 38.75
7 75A 10396-00 TAKE – OFF ASSEMBLY – cabin air inlet 1 NM!
7 76 10429-00 TAILPIPE ASSEMBLY – exhaust 1 NM!
NOTE: Used from ship serial No. 12-01 to 12-353, except 12-342
CONTINUED ON PAGE 36
33
