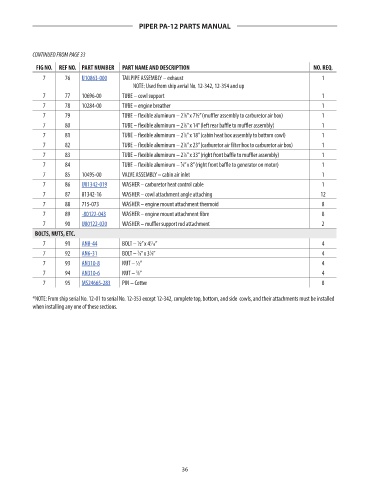

PIPER PA-12 PARTS MANUAL

CONTINUED FROM PAGE 33

FIG NO. REF NO. PART NUMBER PART NAME AND DESCRIPTION NO. REQ. PRICE
7 76 U10863-000 TAILPIPE ASSEMBLY – exhaust 1 189.65
NOTE: Used from ship aerial No. 12-342, 12-354 and up
7 77 10696-00 TUBE – cowl support 1 NM!
7 78 10284-00 TUBE – engine breather 1 NM!
7 79 TUBE – flexible aluminum – 2 ⁄8” x 7½” (muffler assembly to carburetor air box) 1 x
1
7 80 TUBE – flexible aluminum – 2 ⁄8” x 14” (left rear baffle to muffler assembly) 1 x
1
7 81 TUBE – flexible aluminum – 2 ⁄8” x 18” (cabin heat box assembly to bottom cowl) 1 x
1
7 82 TUBE – flexible aluminum – 2 ⁄8” x 23” (carburetor air filter box to carburetor air box) 1 x
1
1
7 83 TUBE – flexible aluminum – 2 ⁄8” x 33” (right front baffle to muffler assembly) 1 x
7 84 TUBE – flexible aluminum – ⁄8” x 8” (right front baffle to generator on motor) 1 x
7
7 85 10495-00 VALVE ASSEMBLY – cabin air inlet 1 NM!
7 86 U81342-019 WASHER – carburetor heat control cable 1 4.2
7 87 81342-16 WASHER – cowl attachment angle attaching 12 NM!
7 88 715-073 WASHER – engine mount attachment thermoid 8 NM!
7 89 -80122-043 WASHER – engine mount attachment fibre 8 4.51
7 90 U80122-020 WASHER – muffler support rod attachment 2 6.71
BOLTS, NUTS, ETC. x
7 91 AN8-44 BOLT – ½” x 4 ⁄16” 4 8.6
7
7 92 AN6-31 BOLT – ⁄8” x 3 ⁄8” 4 1.78
1
3
7 93 AN310-8 NUT – ½” 4 3.9
3
7 94 AN310-6 NUT – ⁄8” 4 1.8
7 95 MS24665-283 PIN – Cotter 8 0.04

*NOTE: From ship serial No. 12-01 to serial No. 12-353 except 12-342, complete top, bottom, and side cowls, and their attachments must be installed
when installing any one of these sections.

36
