PIPER PA-12 PARTS MANUAL

FIG NO. REF NO. PART NUMBER PART NAME AND DESCRIPTION NO. REQ. PRICE
6 35 U40123-025S CABLE – lower parking brake – stainless steel 1 40.32
6 36 80002-09 CLAMP – pulley housing – lower and upper right 3 NM!
6 37 U40701-000 FAIRLEAD – split and safety HANDLE 2 1.3
6 38 41842-00 ASSEMBLY – parking brake complete 1 NM!
6 39 41842-02 HANDLE ASSEMBLY – parking brake 1 NM!
6 40 41821-00 PAWL – parking brake ratchet 1 NM!
6 41 40171-00 HOUSING ASSEMBLY – pulley, lower and upper right 3 NM!
6 42 81322-06 HOUSING – pulley link – upper center 2 NM!
6 43 81322-08 HOUSING – idler pulley link 2 NM!
6 44 81322-05 LINK – ratchet brace 1 NM!
6 45 U80421-000 PULLEY – 1¾” 2 12.37
6 46 U43001-000 PULLEY – 1” 3 18.18

6 47 41761-00 RATCHET – parking brake handle 1 NM!
6 48 U40081-000 RING – fairlead snap 2 0.49

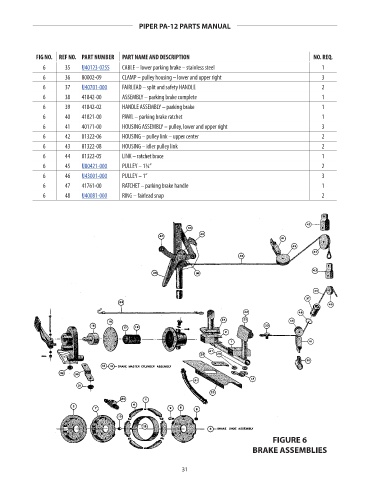

FIGURE 6
BRAKE ASSEMBLIES

31
