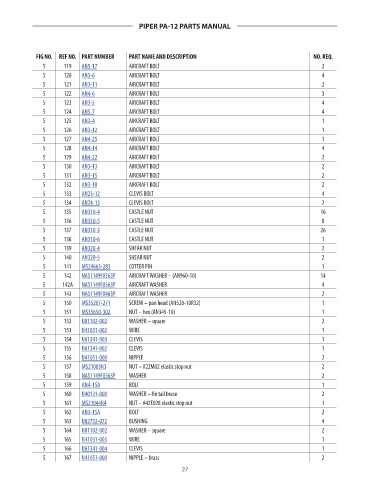

PIPER PA-12 PARTS MANUAL

FIG NO. REF NO. PART NUMBER PART NAME AND DESCRIPTION NO. REQ. PRICE
5 119 AN5-17 AIRCRAFT BOLT 2 1.64
5 120 AN3-6 AIRCRAFT BOLT 4 0.52
5 121 AN3-11 AIRCRAFT BOLT 2 1.02
5 122 AN4-6 AIRCRAFT BOLT 3 0.52
5 123 AN3-5 AIRCRAFT BOLT 4 0.6
5 124 AN5-7 AIRCRAFT BOLT 4 0.78
5 125 AN3-4 AIRCRAFT BOLT 1 0.6
5 126 AN3-12 AIRCRAFT BOLT 1 1.06
5 127 AN4-25 AIRCRAFT BOLT 1 0.88
5 128 AN4-14 AIRCRAFT BOLT 4 0.7
5 129 AN4-22 AIRCRAFT BOLT 2 0.9
5 130 AN3-13 AIRCRAFT BOLT 2 1.02
5 131 AN3-15 AIRCRAFT BOLT 2 0.84
5 132 AN3-10 AIRCRAFT BOLT 2 0.72
5 133 AN23-12 CLEVIS BOLT 4 1.3
5 134 AN24-13 CLEVIS BOLT 2 1.91
5 135 AN310-4 CASTLE NUT 16 1.6
5 136 AN310-5 CASTLE NUT 8 2
5 137 AN310-3 CASTLE NUT 26 1.5
5 138 AN310-6 CASTLE NUT 1 1.8
5 139 AN320-4 SHEAR NUT 2 1.44
5 140 AN320-5 SHEAR NUT 2 1
5 141 MS24665-283 COTTER PIN 1 0.04
5 142 NAS1149F0363P AIRCRAFT WASHER – (AN960-10) 14 0.04
5 142A NAS1149F0563P AIRCRAFT WASHER 4 0.08
5 143 NAS1149F0463P AIRCRAFT WASHER 2 0.06
5 150 MS35207-271 SCREW – pan head (AN520-10R32) 1 0.5
5 151 MS35650-302 NUT – hex (AN345-10) 1 0.14
5 152 U81102-002 WASHER – square 2 6.11
5 153 U41031-002 WIRE 1 42.41
5 154 U61341-003 CLEVIS 1 33.45
5 155 U61341-002 CLEVIS 1 44.31
5 156 U41051-000 NIPPLE 2 30.51
5 157 MS21083N3 NUT – #22M02 elastic stop nut 2 0.22
5 158 NAS1149F0363P WASHER 2 0.04
5 159 AN4-15A BOLT 1 0.44
5 160 U40131-000 WASHER – fin tail brace 2 9.15
5 161 MS21044N4 NUT – #42E028 elastic stop nut 1 0.3
5 162 AN3-15A BOLT 2 0.32
5 163 U82732-072 BUSHING 4 6.47
5 164 U81102-002 WASHER – square 2 6.11
5 165 U41031-003 WIRE 1 37.31
5 166 U61341-004 CLEVIS 1 48.26
5 167 U41051-000 NIPPLE – brass 2 30.51
27
