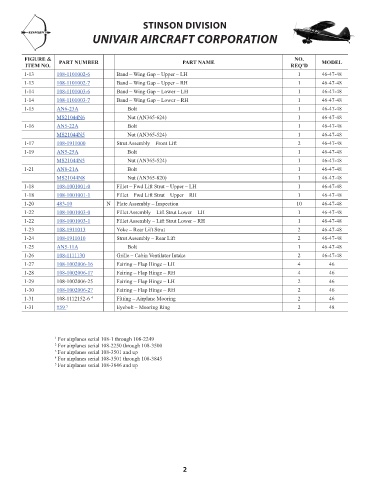

Page 8 - Stinson 108 Series Interactive Digital Parts Catalog

STINSON DIVISION
UNIVAIR AIRCRAFT CORPORATION

FIGURE & NO.
ITEM NO. PART NUMBER PART NAME REQ’D MODEL PRICE
1-13 108-1101002-6 Band – Wing Gap – Upper – LH 1 46-47-48 60.25
1-13 108-1101002-7 Band – Wing Gap – Upper – RH 1 46-47-48 60.25
1-14 108-1101003-6 Band – Wing Gap – Lower – LH 1 46-47-48 82.2
1-14 108-1101003-7 Band – Wing Gap – Lower – RH 1 46-47-48 82.2
1-15 AN6-23A Bolt 1 46-47-48 0.7
MS21044N6 Nut (AN365-624) 1 46-47-48 0.58
1-16 AN5-22A Bolt 1 46-47-48 0.84
MS21044N5 Nut (AN365-524) 1 46-47-48 0.4
1-17 108-1911000 Strut Assembly – Front Lift 2 46-47-48 1916.66
1-19 AN5-25A Bolt 1 46-47-48 1
MS21044N5 Nut (AN365-524) 1 46-47-48 0.4
1-21 AN8-21A Bolt 1 46-47-48 2.7
MS21044N8 Nut (AN365-820) 1 46-47-48 0.88
1-18 108-1001001-0 Fillet – Fwd Lift Strut – Upper – LH 1 46-47-48 105.84
1-18 108-1001001-1 Fillet – Fwd Lift Strut – Upper – RH 1 46-47-48 105.84
1-20 483-10 N Plate Assembly – Inspection 10 46-47-48 2.25
1-22 108-1001003-0 Fillet Assembly – Lift Strut Lower – LH 1 46-47-48 227.58
1-22 108-1001003-1 Fillet Assembly – Lift Strut Lower – RH 1 46-47-48 227.58
1-23 108-1911013 Yoke – Rear Lift Strut 2 46-47-48 104.32
1-24 108-1911010 Strut Assembly – Rear Lift 2 46-47-48 1537.79
1-25 AN5-11A Bolt 1 46-47-48 0.5
1-26 108-1111130 Grille – Cabin Ventilator Intake 2 46-47-48 31.92
1-27 108-1002006-16 Fairing – Flap Hinge – LH 4 46 141.49
1-28 108-1002006-17 Fairing – Flap Hinge – RH 4 46 141.49
1-29 108-1002006-25 Fairing – Flap Hinge – LH 2 46 NM!
1-30 108-1002006-27 Fairing – Flap Hinge – RH 2 46 141.49
1-31 108-1112152-6 4 Fitting – Airplane Mooring 2 46 NM!
1-31 #59 5 Eyebolt – Mooring Ring 2 48 11.6

1 For airplanes serial 108-1 through 108-2249
2 For airplanes serial 108-2250 through 108-3500
3 For airplanes serial 108-3501 and up
4 For airplanes serial 108-3501 through 108-3845
5 For airplanes serial 108-3846 and up
