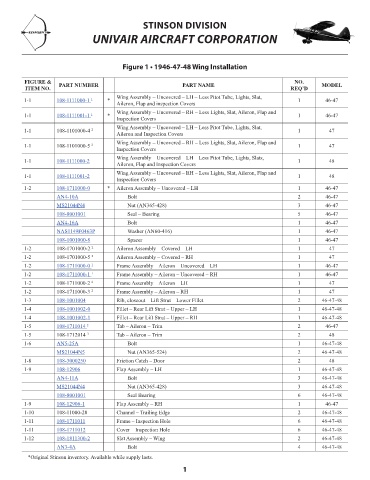

Figure 1 • 1946-47-48 Wing Installation

FIGURE & PART NUMBER PART NAME NO. MODEL PRICE
ITEM NO. REQ’D
Wing Assembly – Uncovered – LH – Less Pitot Tube, Lights, Slat,
1-1 108-1111000-1 1 * 1 46-47 19027.47
Aileron, Flap and inspection Covers
Wing Assembly – Uncovered – RH – Less Lights, Slat, Aileron, Flap and
1-1 108-1111001-1 1 * 1 46-47 19027.47
Inspection Covers
Wing Assembly – Uncovered – LH – Less Pitot Tube, Lights, Slat,
1-1 108-1101000-4 2 1 47 NM!
Aileron and Inspection Covers
Wing Assembly – Uncovered – RH – Less Lights, Slat, Aileron, Flap and
1-1 108-1101000-5 2 1 47 NM!
Inspection Covers
Wing Assembly – Uncovered – LH – Less Pitot Tube, Lights, Slats,
1-1 108-1111000-2 1 48 19027.47
Aileron, Flap and Inspection Covers
Wing Assembly – Uncovered – RH – Less Lights, Slat, Aileron, Flap and
1-1 108-1111001-2 1 48 19027.47
Inspection Covers
1-2 108-1711000-0 * Aileron Assembly – Uncovered – LH 1 46-47 1570.52
AN4-10A Bolt 2 46-47 0.26
MS21044N4 Nut (AN365-428) 3 46-47 0.3
108-8001001 Seal – Bearing 5 46-47 2.58
AN4-16A Bolt 1 46-47 0.4
NAS1149F0463P Washer (AN60-416) 1 46-47 0.06
108-1001000-8 Spacer 1 46-47 39.42
1-2 108-1701000-2 2 Aileron Assembly – Covered – LH 1 47 NM!
1-2 108-1701000-5 2 Aileron Assembly – Covered – RH 1 47 NM!
1-2 108-1711000-0 1 Frame Assembly – Aileron – Uncovered – LH 1 46-47 1570.52
1-2 108-1711000-1 1 Frame Assembly – Aileron – Uncovered – RH 1 46-47 1570.52
1-2 108-1711000-2 2 Frame Assembly – Aileron – LH 1 47 NM!
1-2 108-1711000-3 2 Frame Assembly – Aileron – RH 1 47 NM!
1-3 108-1001004 Rib, closeout – Lift Strut – Lower Fillet 2 46-47-48 46.51
1-4 108-1001002-0 Fillet – Rear Lift Strut – Upper – LH 1 46-47-48 102.75
1-4 108-1001002-1 Fillet – Rear Lift Strut – Upper – RH 1 46-47-48 102.75
1-5 108-1711014 2 Tab – Aileron – Trim 2 46-47 6.76
1-5 108-1712014 3 Tab – Aileron – Trim 2 48 NM!
1-6 AN5-25A Bolt 1 46-47-48 1
MS21044N5 Nut (AN365-524) 2 46-47-48 0.4
1-8 108-3000250 Friction Catch – Door 2 48 8.35
1-9 108-12906 Flap Assembly – LH 1 46-47-48 3691.65
AN4-11A Bolt 3 46-47-48 0.32
MS21044N4 Nut (AN365-428) 3 46-47-48 0.3
108-8001001 Seal Bearing 6 46-47-48 2.58
1-9 108-12906-1 Flap Assembly – RH 1 46-47 3691.65
1-10 108-11000-28 Channel – Trailing Edge 2 46-47-48 NM!
1-11 108-1711011 Frame – Inspection Hole 6 46-47-48 10.82
1-11 108-1711012 Cover – Inspection Hole 6 46-47-48 21.26
1-12 108-1811300-2 Slat Assembly – Wing 2 46-47-48 609.51
AN3-4A Bolt 4 46-47-48 0.2

*Original Stinson inventory. Available while supply lasts.
