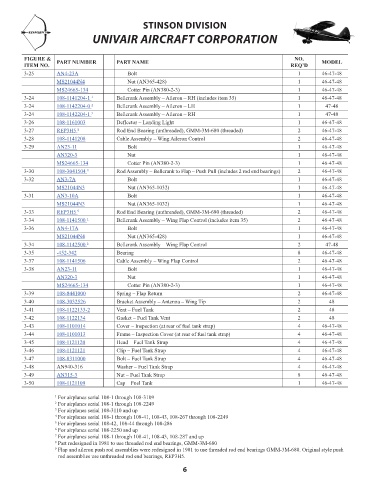

Page 12 - Stinson 108 Series Interactive Digital Parts Catalog

STINSON DIVISION
UNIVAIR AIRCRAFT CORPORATION

FIGURE & PART NUMBER PART NAME NO. MODEL PRICE
ITEM NO. REQ’D
3-25 AN4-23A Bolt 1 46-47-48 1
MS21044N4 Nut (AN365-428) 1 46-47-48 0.3
MS24665-134 Cotter Pin (AN380-2-3) 1 46-47-48 0.06
3-24 108-1141204-1 1 Bellcrank Assembly – Aileron – RH (includes item 35) 1 46-47-48 359.44
3-24 108-1142204-0 3 Bellcrank Assembly – Aileron – LH 1 47-48 257.48
3-24 108-1142204-1 3 Bellcrank Assembly – Aileron – RH 1 47-48 257.48
3-26 108-1161003 Deflector – Landing Light 1 46-47-48 24.89
3-27 REP3H5 9 Rod End Bearing (unthreaded), GMM-3M-680 (threaded) 2 46-47-48 85.76
3-28 108-1141208 Cable Assembly – Wing Aileron Control 2 46-47-48 115
3-29 AN23-11 Bolt 1 46-47-48 1.6
AN320-3 Nut 1 46-47-48 1
MS24665-134 Cotter Pin (AN380-2-3) 1 46-47-48 0.06
3-30 108-3041504 8 Rod Assembly – Bellcrank to Flap – Push Pull (includes 2 rod end bearings) 2 46-47-48 292.62
3-32 AN3-7A Bolt 1 46-47-48 0.52
MS21044N3 Nut (AN365-1032) 1 46-47-48 0.24
3-31 AN3-10A Bolt 1 46-47-48 0.2
MS21044N3 Nut (AN365-1032) 1 46-47-48 0.24
3-33 REP3H5 9 Rod End Bearing (unthreaded), GMM-3M-680 (threaded) 2 46-47-48 85.76
3-34 108-1141500 1 Bellcrank Assembly – Wing Flap Control (includes item 35) 2 46-47-48 274.16
3-36 AN4-17A Bolt 1 46-47-48 0.54
MS21044N4 Nut (AN365-428) 1 46-47-48 0.3
3-34 108-1142500 3 Bellcrank Assembly – Wing Flap Control 2 47-48 308.19
3-35 -452-342 Bearing 8 46-47-48 10
3-37 108-1141506 Cable Assembly – Wing Flap Control 2 46-47-48 118.91
3-38 AN23-11 Bolt 1 46-47-48 1.6
AN320-3 Nut 1 46-47-48 1
MS24665-134 Cotter Pin (AN380-2-3) 1 46-47-48 0.06
3-39 108-8441000 Spring – Flap Return 2 46-47-48 77.26
3-40 108-3032526 Bracket Assembly – Antenna – Wing Tip 2 48 10.84
3-41 108-1122133-2 Vent – Fuel Tank 2 48 136.35
3-42 108-1122134 Gasket – Fuel Tank Vent 2 48 10.26
3-43 108-1101014 Cover – Inspection (at rear of fuel tank strap) 4 46-47-48 38.72
3-44 108-1101013 Frame – Inspection Cover (at rear of fuel tank strap) 4 46-47-48 13.52
3-45 108-1121120 Head – Fuel Tank Strap 4 46-47-48 53.04
3-46 108-1121121 Clip – Fuel Tank Strap 4 46-47-48 15.11
3-47 108-8311000 Bolt – Fuel Tank Strap 4 46-47-48 28.31
3-48 AN940-316 Washer – Fuel Tank Strap 4 46-47-48 NM!
3-49 AN315-3 Nut – Fuel Tank Strap 8 46-47-48 0.26
3-50 108-1121109 Cap – Fuel Tank 1 46-47-48 13.31

1 For airplanes serial 108-1 through 108-3109
2 For airplanes serial 108-1 through 108-2249
3 For airplanes serial 108-3110 and up
4 For airplanes serial 108-1 through 108-41, 108-43, 108-267 through 108-2249
5 For airplanes serial 108-42, 108-44 through 108-286
6 For airplanes serial 108-2250 and up
7 For airplanes serial 108-1 through 108-41, 108-43, 108-287 and up
8 Part redesigned in 1981 to use threaded rod end bearings, GMM-3M-680
9 Flap and aileron push rod assemblies were redesigned in 1981 to use threaded rod end bearings GMM-3M-680. Original style push
rod assemblies use unthreaded rod end bearings, REP3H5.
