STINSON DIVISION
UNIVAIR AIRCRAFT CORPORATION

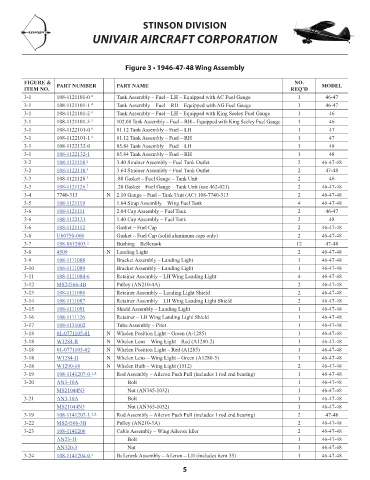

Figure 3 • 1946-47-48 Wing Assembly

FIGURE & PART NUMBER PART NAME NO. MODEL PRICE
ITEM NO. REQ’D
3-1 108-1121101-0 Tank Assembly – Fuel – LH – Equipped with AC Fuel Gauge 1 46-47 NM!
4
3-1 108-1121101-1 Tank Assembly – Fuel – RH – Equipped with AG Fuel Gauge 1 46-47 NM!
4
3-1 108-1121101-2 Tank Assembly – Fuel – LH – Equipped with King Seeley Fuel Gauge 1 46 NM!
5
3-1 108-1121101-3 5 102.08 Tank Assembly – Fuel – RH – Equipped with King Seeley Fuel Gauge 1 46 NM!
3-1 108-1122101-0 81.12 Tank Assembly – Fuel – LH 1 47 NM!
6
3-1 108-1122101-1 81.12 Tank Assembly – Fuel – RH 1 47 NM!
6
3-1 108-1122132-0 85.84 Tank Assembly – Fuel – LH 1 48 NM!
3-1 108-1122132-1 85.84 Tank Assembly – Fuel – RH 1 48 1938.04
3-2 108-1121118 2 3.40 Strainer Assembly – Fuel Tank Outlet 2 46-47-48 50.37
3-2 108-1122118 6 3.64 Strainer Assembly – Fuel Tank Outlet 2 47-48 150.7
3-3 108-1121128 5 .80 Gasket – Fuel Gauge – Tank Unit 2 46 NM!
3-3 108-1121126 7 .20 Gasket – Fuel Gauge – Tank Unit (use 462-021) 2 46-47-48 3.61
3-4 7740-313 N 2.10 Gauge – Fuel – Tank Unit (AC) 108-7740-313 2 46-47-48 NM!
3-5 108-1121119 1.64 Strap Assembly – Wing Fuel Tank 4 46-47-48 161.74
3-6 108-1121111 2.04 Cap Assembly – Fuel Tank 2 46-47 181.6
3-6 108-1122131 1.40 Cap Assembly – Fuel Tank 2 48 115.29
3-6 108-1121112 Gasket – Fuel Cap 2 46-47-48 2.32
3-6 U60750-006 Gasket – Fuel Cap (solid aluminum caps only) 2 46-47-48 1.97
3-7 108-8612003 3 Bushing – Bellcrank 12 47-48 16.27
3-8 4509 N Landing Light 2 46-47-48 21.84
3-9 108-1111088 Bracket Assembly – Landing Light 1 46-47-48 53.14
3-10 108-1111089 Bracket Assembly – Landing Light 1 46-47-48 53.14
3-11 108-1111084-6 Retainer Assembly – LH Wing Landing Light 4 46-47-48 34.7
3-12 MS24566-4B Pulley (AN210-4A) 2 46-47-48 64.08
3-13 108-1111086 Retainer Assembly – Landing Light Shield 2 46-47-48 27.86
3-14 108-1111087 Retainer Assembly – LH Wing Landing Light Shield 2 46-47-48 23.53
3-15 108-1111091 Shield Assembly – Landing Light 1 46-47-48 77.48
3-16 108-1111126 Retainer – LH Wing Landing Light Shield 1 46-47-48 64.4
3-17 108-1131002 Tube Assembly – Pitot 1 46-47-48 333.67
3-18 01-0771105-01 N Whelen Position Light – Green (A-1285) 1 46-47-48 311.22
3-18 W1284-R N Whelen Lens – Wing Light – Red (A1280-2) 1 46-47-48 81.9
3-18 01-0771105-02 N Whelen Position Light – Red (A1285) 1 46-47-48 311.22
3-18 W1284-G N Whelen Lens – Wing Light – Green (A1280-3) 1 46-47-48 81.9
3-18 W1290-14 N Whelen Bulb – Wing Light (1512) 2 46-47-48 95.16
3-19 108-1141207-0 1, 8 Rod Assembly – Aileron Push Pull (includes 1 rod end bearing) 1 46-47-48 235.08
3-20 AN3-10A Bolt 1 46-47-48 0.2
MS21044N3 Nut (AN365-1032) 1 46-47-48 0.24
3-21 AN3-10A Bolt 1 46-47-48 0.2
MS21044N3 Nut (AN365-1032) 1 46-47-48 0.24
3-19 108-1141207-1 3, 8 Rod Assembly – Aileron Push Pull (includes 1 rod end bearing) 2 47-48 326.77
3-22 MS24566-3B Pulley (AN210-3A) 2 46-47-48 40.94
3-23 108-1141206 Cable Assembly – Wing Aileron Idler 2 46-47-48 142.76
AN23-11 Bolt 1 46-47-48 1.6
AN320-3 Nut 1 46-47-48 1
3-24 108-1141204-0 1 Bellcrank Assembly – Aileron – LH (includes item 35) 1 46-47-48 359.44

5
