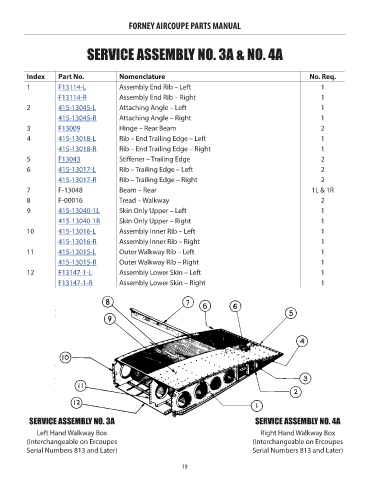

FORNEY AIRCOUPE PARTS MANUAL

SERVICE ASSEMBLY NO. 3A & NO. 4A

Index Part No. Nomenclature No. Req. Price
1 F13114-L Assembly End Rib – Left 1 656.4
F13114-R Assembly End Rib – Right 1 656.4
2 415-13045-L Attaching Angle – Left 1 7.72
415-13045-R Attaching Angle – Right 1 7.72

3 F13009 Hinge – Rear Beam 2 73.31
4 415-13018-L Rib – End Trailing Edge – Left 1 118.48
415-13018-R Rib – End Trailing Edge – Right 1 118.48
5 F13043 Stiffener – Trailing Edge 2 21.71
6 415-13017-L Rib – Trailing Edge – Left 2 313.36
415-13017-R Rib – Trailing Edge – Right 2 313.36
7 F-13048 Beam – Rear 1L & 1R NM!
8 F-00016 Tread – Walkway 2 NM!
9 415-13040-1L Skin Only Upper – Left 1 266.71

415-13040-1R Skin Only Upper – Right 1 266.72
10 415-13016-L Assembly Inner Rib – Left 1 155.59
415-13016-R Assembly Inner Rib – Right 1 155.59
11 415-13015-L Outer Walkway Rib – Left 1 155.79
415-13015-R Outer Walkway Rib – Right 1 155.79
12 F13147-1-L Assembly Lower Skin – Left 1 315.41
F13147-1-R Assembly Lower Skin – Right 1 315.41

SERVICE ASSEMBLY NO. 3A SERVICE ASSEMBLY NO. 4A
Left Hand Walkway Box Right Hand Walkway Box
(Interchangeable on Ercoupes (Interchangeable on Ercoupes
Serial Numbers 813 and Later) Serial Numbers 813 and Later)

19
