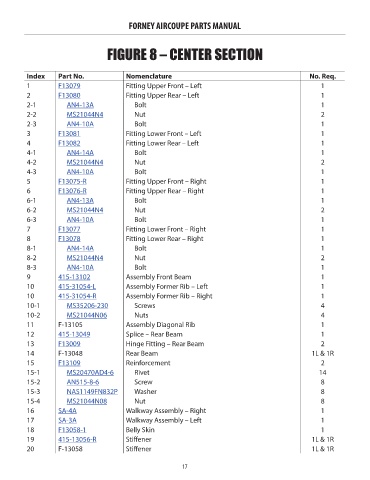

FORNEY AIRCOUPE PARTS MANUAL

FIGURE 8 – CENTER SECTION

Index Part No. Nomenclature No. Req. Price
1 F13079 Fitting Upper Front – Left 1 370.88
2 F13080 Fitting Upper Rear – Left 1 370.88
2-1 AN4-13A Bolt 1 0.55
2-2 MS21044N4 Nut 2 0.3
2-3 AN4-10A Bolt 1 0.26
3 F13081 Fitting Lower Front – Left 1 370.88
4 F13082 Fitting Lower Rear – Left 1 370.88
4-1 AN4-14A Bolt 1 0.3
4-2 MS21044N4 Nut 2 0.3
4-3 AN4-10A Bolt 1 0.26
5 F13075-R Fitting Upper Front – Right 1 370.88
6 F13076-R Fitting Upper Rear – Right 1 370.88
6-1 AN4-13A Bolt 1 0.55
6-2 MS21044N4 Nut 2 0.3
6-3 AN4-10A Bolt 1 0.26
7 F13077 Fitting Lower Front – Right 1 370.88
8 F13078 Fitting Lower Rear – Right 1 370.88
8-1 AN4-14A Bolt 1 0.3
8-2 MS21044N4 Nut 2 0.3
8-3 AN4-10A Bolt 1 0.26
9 415-13102 Assembly Front Beam 1 16139.97
10 415-31054-L Assembly Former Rib – Left 1 13.07
10 415-31054-R Assembly Former Rib – Right 1 13.07
10-1 MS35206-230 Screws 4 0.08
10-2 MS21044N06 Nuts 4 0.32
11 F-13105 Assembly Diagonal Rib 1 NM!
12 415-13049 Splice – Rear Beam 1 117.45
13 F13009 Hinge Fitting – Rear Beam 2 73.31
14 F-13048 Rear Beam 1L & 1R NM!
15 F13109 Reinforcement 2 25.28
15-1 MS20470AD4-6 Rivet 14 2.09
15-2 AN515-8-6 Screw 8 0.15
15-3 NAS1149FN832P Washer 8 0.04
15-4 MS21044N08 Nut 8 0.24
16 SA-4A Walkway Assembly – Right 1 3820.39
17 SA-3A Walkway Assembly – Left 1 3820.39
18 F13058-1 Belly Skin 1 403.46
19 415-13056-R Stiffener 1L & 1R 21.68
20 F-13058 Stiffener 1L & 1R NM!
