Page 16 - Forney Aircoupe Parts Manual

FORNEY AIRCOUPE PARTS MANUAL

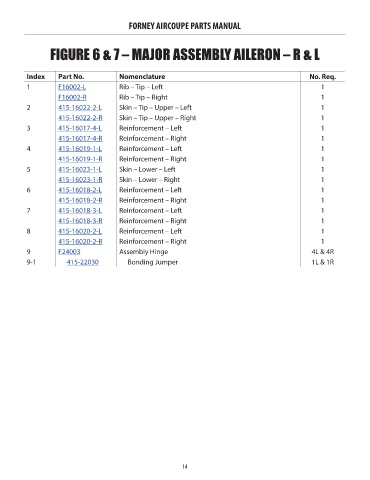

FIGURE 6 & 7 – MAJOR ASSEMBLY AILERON – R & L

Index Part No. Nomenclature No. Req. Price
1 F16002-L Rib – Tip – Left 1 21.17
F16002-R Rib – Tip – Right 1 21.17
2 415-16022-2-L Skin – Tip – Upper – Left 1 125.79
415-16022-2-R Skin – Tip – Upper – Right 1 168.24

3 415-16017-4-L Reinforcement – Left 1 7.21
415-16017-4-R Reinforcement – Right 1 7.21
4 415-16019-1-L Reinforcement – Left 1 7.21
415-16019-1-R Reinforcement – Right 1 7.21
5 415-16023-1-L Skin – Lower – Left 1 192.77
415-16023-1-R Skin – Lower – Right 1 192.77
6 415-16018-2-L Reinforcement – Left 1 7.21
415-16018-2-R Reinforcement – Right 1 7.21
7 415-16018-3-L Reinforcement – Left 1 7.21

415-16018-3-R Reinforcement – Right 1 7.21
8 415-16020-2-L Reinforcement – Left 1 7.21
415-16020-2-R Reinforcement – Right 1 7.21
9 F24003 Assembly Hinge 4L & 4R 39.24
9-1 415-22030 Bonding Jumper 1L & 1R 2.61
