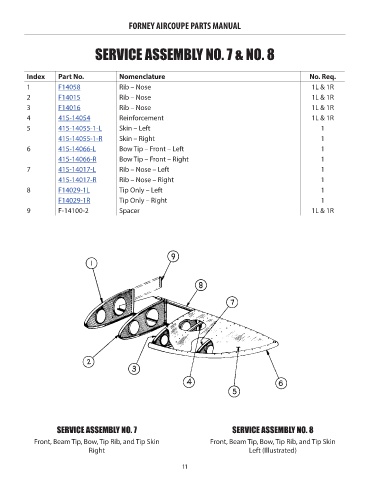

FORNEY AIRCOUPE PARTS MANUAL
SERVICE ASSEMBLY NO. 7 & NO. 8
Index Part No. Nomenclature No. Req. Price
1 F14058 Rib – Nose 1L & 1R 91.75
2 F14015 Rib – Nose 1L & 1R 54.18
3 F14016 Rib – Nose 1L & 1R 54.18
4 415-14054 Reinforcement 1L & 1R 4.74
5 415-14055-1-L Skin – Left 1 95.23
415-14055-1-R Skin – Right 1 95.23
6 415-14066-L Bow Tip – Front – Left 1 719.55
415-14066-R Bow Tip – Front – Right 1 719.55
7 415-14017-L Rib – Nose – Left 1 128.86
415-14017-R Rib – Nose – Right 1 128.86
8 F14029-1L Tip Only – Left 1 223.67
F14029-1R Tip Only – Right 1 223.67
9 F-14100-2 Spacer 1L & 1R NM!
SERVICE ASSEMBLY NO. 7 SERVICE ASSEMBLY NO. 8
Front, Beam Tip, Bow, Tip Rib, and Tip Skin Front, Beam Tip, Bow, Tip Rib, and Tip Skin
Right Left (Illustrated)
