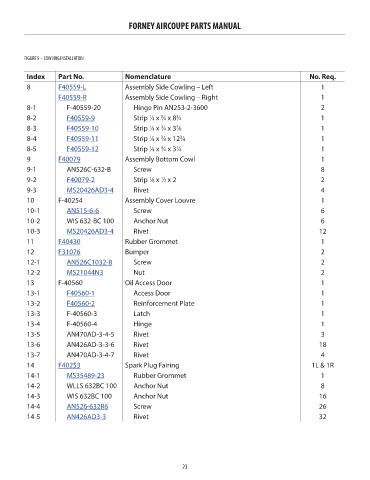

FORNEY AIRCOUPE PARTS MANUAL

FIGURE 9 – COWLING INSTALLATION

Index Part No. Nomenclature No. Req. Price
8 F40559-L Assembly Side Cowling – Left 1 908.01
F40559-R Assembly Side Cowling – Right 1 908.01
8-1 F-40559-20 Hinge Pin AN253-2-3600 2 NM!
8-2 F40559-9 Strip ⁄4 x ⁄4 x 8 ⁄4 1 2.56
3
1
3
8-3 F40559-10 Strip ⁄4 x ⁄4 x 3 ⁄8 1 9.58
3
3
1
8-4 F40559-11 Strip ⁄4 x ⁄4 x 12 ⁄4 1 9.58
1
3
3
8-5 F40559-12 Strip ⁄4 x ⁄4 x 3 ⁄4 1 2.56
1
1
3
9 F40079 Assembly Bottom Cowl 1 1133.67
9-1 AN526C-632-B Screw 8 NM!
9-2 F40079-2 Strip ⁄8 x ⁄2 x 2 2 2.58
1
1
9-3 MS20426AD3-4 Rivet 4 4.95
10 F-40254 Assembly Cover Louvre 1 NM!
10-1 AN515-6-6 Screw 6 0.11
10-2 WIS 632-BC 100 Anchor Nut 6 NM!
10-3 MS20426AD3-4 Rivet 12 4.95
11 F40430 Rubber Grommet 1 26.21
12 F31076 Bumper 2 7.21
12-1 AN526C1032-8 Screw 2 0.84
12-2 MS21044N3 Nut 2 0.24
13 F-40560 Oil Access Door 1 NM!

13-1 F40560-1 Access Door 1 184.34
13-2 F40560-2 Reinforcement Plate 1 54.79
13-3 F-40560-3 Latch 1 NM!
13-4 F-40560-4 Hinge 1 NM!
13-5 AN470AD-3-4-5 Rivet 3 NM!
13-6 AN426AD-3-3-6 Rivet 18 NM!
13-7 AN470AD-3-4-7 Rivet 4 NM!
14 F40253 Spark Plug Fairing 1L & 1R 125.37
14-1 MS35489-23 Rubber Grommet 1 1.34

14-2 WLLS 632BC 100 Anchor Nut 8 NM!
14-3 WIS 632BC 100 Anchor Nut 16 NM!
14-4 AN526-632R6 Screw 26 0.2
14-5 AN426AD3-3 Rivet 32 2.11

23
