Page 18 - Aeronca 7A Interactive Service Manual
P. 18
AN23-9 BOLT AN320-3 NUT

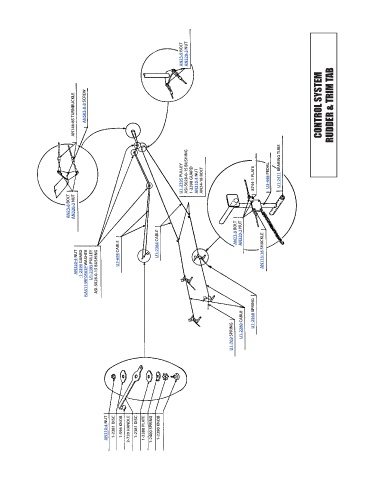

AN146-8S TURNBUCKLE AN503-8-8 SCREW CONTROL SYSTEM RUDDER & TRIM TAB
U1-2395 PULLEY ASI-5028-0-15 BUSHING 1-2398 GUARD AN310-4 NUT AN24-18 BOLT 8744-1 PLATE U3-448 PEDAL U1-2411 BEARING TUBE
AN23-8 BOLT AN320-3 NUT AN23-9 BOLT AN320-3 NUT
AN320-4 NUT -1-2399 GUARD NAS1149F0563P WASHER U1-2395 PULLEY ASI-5028-0-15 BUSHING U2-698 CABLE U1-2364 CABLE AN115-16 SHACKLE
U1-769 SPRING U1-2280 CABLE U1-2568 SPRING
AN310-4 NUT 1-2381 DISC 1-596 KNOB 2-720 HANDLE 1-2381 DISC 1-2380 PLATE 1-2400 SPRING 1-2390 KNOB
