Page 15 - Aeronca 7A Interactive Service Manual

3-447 STRIP FAIRING 6x1 STOVE HEAD TYPE “A” P.K. SCREWS
AN515-8-14 SCREW
AN970-3 WASHER
MS21044N08 NUT
WATERBURY EYELET #10120
4-555 BULKHEAD U2-753 FAIRING 3-525 TOP ASSEMBLY
4-556 BULKHEAD 1-2679 STRINGER
WATERBURY EYELET #-581
18 GA. 1¼” NAILS
2-733 FAIRLEAD
7-455 BULKHEAD
WATERBURY EYELET #10120

1-2366 STRINGER
1-2376-2 STRINGER
1-2367-1 STRINGER

4-557 BULKHEAD WATERBURY
EYELET #10120
MS35206-246 SCREW
1-2367-7 STRINGER 6x½ STOVE HEAD
MS21044N08 NUT TYPE “A” P.K. SCREWS
WATERBURY EYELET #10120 1-2376-2 STRINGER
7-461 L/R FRAME WINDOW 1-2376-1 STRINGER
18 GA. 1¼” NAILS

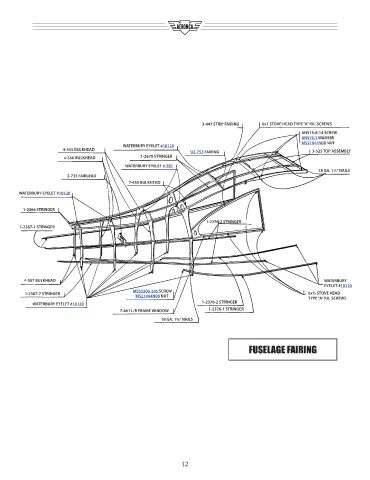

FUSELAGE FAIRING

12
