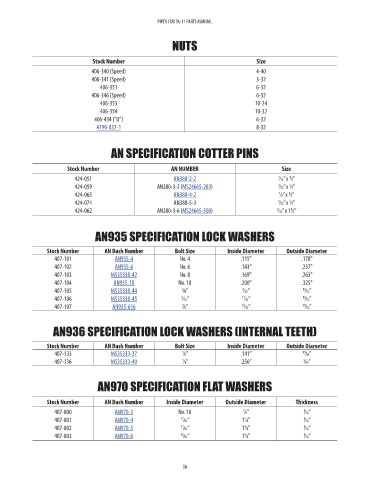

PIPER CUB PA-11 PARTS MANUAL

NUTS

Stock Number Size
406-340 (Speed) 4-40
406-341 (Speed) 3-32
406-351 6-32
406-346 (Speed) 6-32
406-353 10-24
406-354 10-32
406-434 (“U”) 6-32
A190-832-1 8-32

AN SPECIFICATION COTTER PINS

Stock Number AN NUMBER Size
424-051 AN380-2-2 1 ⁄16” x ⁄2”
1
424-059 AN380-3-3 (MS24665-283) 3 ⁄32” x ⁄4”
3
424-065 AN380-4-2 1 ⁄8” x ⁄2”
1
424-074 AN380-5-3 5 ⁄32” x ⁄4”
3
1
424-062 AN380-3-6 (MS24665-500) 3 ⁄32” x 1 ⁄2”
AN935 SPECIFICATION LOCK WASHERS

Stock Number AN Dash Number Bolt Size Inside Diameter Outside Diameter
407-101 AN935-4 No. 4 .115” .178”
407-102 AN935-6 No. 6 .143” .237”
407-103 MS35338-42 No. 8 .169” .263”
407-104 AN935-10 No. 10 .200” .325”
407-105 MS35338-44 ¼” 9 ⁄32” 15 ⁄32”
407-106 MS35338-45 5 ⁄16” 11 ⁄32” 19 ⁄32”
407-107 AN935-616 3 ⁄8” 13 ⁄32” 21 ⁄32”

AN936 SPECIFICATION LOCK WASHERS (INTERNAL TEETH)

Stock Number AN Dash Number Bolt Size Inside Diameter Outside Diameter
407-133 MS35333-37 1 ⁄8” .141” 19 ⁄64”
407-136 MS35333-40 1 ⁄4” .256” 3 ⁄64”

AN970 SPECIFICATION FLAT WASHERS

Stock Number AN Dash Number Inside Diameter Outside Diameter Thickness
407-800 AN970-3 No. 10 7 ⁄8” 1 ⁄16”
407-801 AN970-4 17 ⁄64” 1 ⁄8” 1 ⁄16”
1
407-802 AN970-5 21 ⁄64” 1 ⁄8” 1 ⁄16”
3
407-803 AN970-6 25 ⁄64” 1 ⁄8” 1 ⁄16”
5

36
