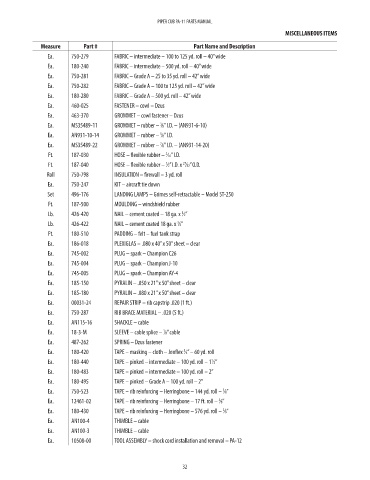

PIPER CUB PA-11 PARTS MANUAL
MISCELLANEOUS ITEMS

Measure Part # Part Name and Description Price
Ea. 750-279 FABRIC – intermediate – 100 to 125 yd. roll – 40” wide NM!
Ea. 180-240 FABRIC – intermediate – 500 yd. roll – 40” wide NM!
Ea. 750-281 FABRIC – Grade A – 25 to 35 yd. roll – 42” wide NM!
Ea. 750-282 FABRIC – Grade A – 100 to 125 yd. roll – 42” wide NM!
Ea. 180-280 FABRIC – Grade A – 500 yd. roll – 42” wide NM!
Ea. 460-025 FASTENER – cowl – Dzus NM!
Ea. 463-370 GROMMET – cowl fastener – Dzus NM!
Ea. MS35489-11 GROMMET – rubber – ⁄8” I.D. – (AN931-6-10) 0.6
3
Ea. AN931-10-14 GROMMET – rubber – ⁄8” I.D. 2
5
7
Ea. MS35489-22 GROMMET – rubber – ⁄8” I.D. – (AN931-14-20) 2.34
3
Ft. 187-030 HOSE – flexible rubber – ⁄16” I.D. NM!
Ft. 187-040 HOSE – flexible rubber – ⁄2” I.D. x ⁄32” O.D. NM!
27
1
Roll 750-798 INSULATION – firewall – 3 yd. roll NM!
Ea. 750-247 KIT – aircraft tie down NM!
Set 496-176 LANDING LAMPS – Grimes self-retractable – Model ST-250 NM!
Ft. 187-500 MOULDING – windshield rubber NM!
Lb. 426-420 NAIL – cement coated – 18 ga. x ⁄2” NM!
1
Lb. 426-422 NAIL – cement coated 18 ga. x ⁄4” NM!
3
Ft. 180-510 PADDING – felt – fuel tank strap NM!
Ea. 186-018 PLEXIGLAS – .080 x 40” x 50” sheet – clear NM!
Ea. 745-002 PLUG – spark – Champion C26 NM!

Ea. 745-004 PLUG – spark – Champion J-10 NM!
Ea. 745-005 PLUG – spark – Champion AY-4 NM!
Ea. 185-150 PYRALIN – .050 x 21” x 50” sheet – clear NM!
Ea. 185-180 PYRALIN – .080 x 21” x 50” sheet – clear NM!
Ea. 00031-24 REPAIR STRIP – rib capstrip .020 (1 ft.) NM!
Ea. 750-287 RIB BRACE MATERIAL – .020 (5 ft.) NM!
Ea. AN115-16 SHACKLE – cable 22.5
Ea. 18-3-M SLEEVE – cable splice – ⁄8” cable 0.44
1
Ea. 487-262 SPRING – Dzus fastener NM!
Ea. 180-420 TAPE – masking – cloth – Jonflex ⁄4” – 60 yd. roll NM!
3
Ea. 180-440 TAPE – pinked – intermediate – 100 yd. roll – 1 ⁄2” NM!
1
Ea. 180-483 TAPE – pinked – intermediate – 100 yd. roll – 2” NM!
Ea. 180-495 TAPE – pinked – Grade A – 100 yd. roll – 2” NM!
Ea. 750-523 TAPE – rib reinforcing – Herringbone – 144 yd. roll – ⁄8” NM!
3
Ea. 12461-02 TAPE – rib reinforcing – Herringbone – 17 ft. roll – ⁄8” NM!
3
Ea. 180-430 TAPE – rib reinforcing – Herringbone – 576 yd. roll – ⁄8” NM!
3
Ea. AN100-4 THIMBLE – cable 0.34
Ea. AN100-3 THIMBLE – cable 0.4
Ea. 10508-00 TOOL ASSEMBLY – shock cord installation and removal – PA-12 NM!

32
