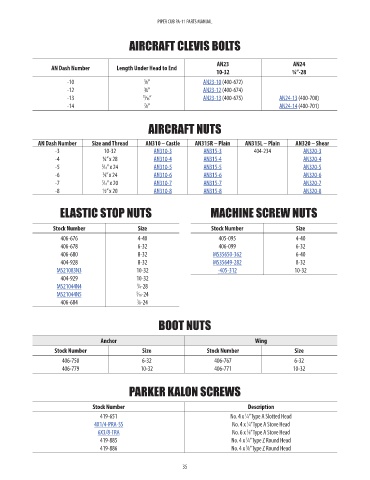

PIPER CUB PA-11 PARTS MANUAL

AIRCRAFT CLEVIS BOLTS

AN23 AN24
AN Dash Number Length Under Head to End
10-32 ¼”-28
-10 5 ⁄8” AN23-10 (400-672)
-12 ¾” AN23-12 (400-674)
-13 13 ⁄16” AN23-13 (400-675) AN24-13 (400-700)
-14 7 ⁄8” AN24-14 (400-701)

AIRCRAFT NUTS

AN Dash Number Size and Thread AN310 – Castle AN315R – Plain AN315L – Plain AN320 – Shear
-3 10-32 AN310-3 AN315-3 404-234 AN320-3
-4 ¼” x 28 AN310-4 AN315-4 AN320-4
-5 5 ⁄16” x 24 AN310-5 AN315-5 AN320-5
-6 3 ⁄8” x 24 AN310-6 AN315-6 AN320-6
-7 7 ⁄16” x 20 AN310-7 AN315-7 AN320-7
-8 ½” x 20 AN310-8 AN315-8 AN320-8

ELASTIC STOP NUTS MACHINE SCREW NUTS

Stock Number Size Stock Number Size
406-676 4-40 405-095 4-40
406-678 6-32 406-099 6-32
406-680 8-32 MS35650-362 6-40
404-928 8-32 MS35649-282 8-32
MS21083N3 10-32 -405-312 10-32
404-929 10-32
MS21044N4 1 ⁄4-28
MS21044N5 5 ⁄16-24
406-684 3 ⁄8-24

BOOT NUTS

Anchor Wing

Stock Number Size Stock Number Size
406-750 6-32 406-767 6-32
406-779 10-32 406-771 10-32

PARKER KALON SCREWS

Stock Number Description
419-651 No. 4 x ⁄4” Type A Slotted Head
1
4X1/4-PRA-SS No. 4 x ⁄4” Type A Stove Head
1
6X3/8-TRA No. 6 x ⁄8” Type A Stove Head
3
1
419-885 No. 4 x ⁄4” Type Z Round Head
3
419-886 No. 4 x ⁄8” Type Z Round Head
35
