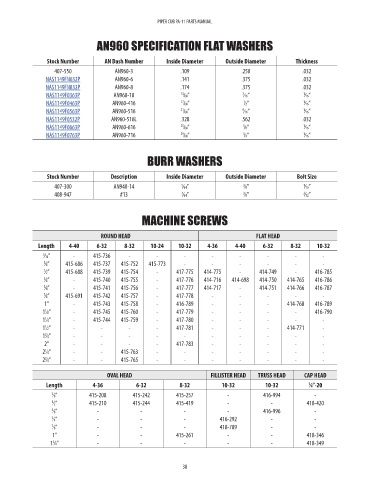

PIPER CUB PA-11 PARTS MANUAL

AN960 SPECIFICATION FLAT WASHERS

Stock Number AN Dash Number Inside Diameter Outside Diameter Thickness
407-550 AN960-3 .109 .250 .032
NAS1149FN632P AN960-6 .141 .375 .032
NAS1149FN832P AN960-8 .174 .375 .032
NAS1149F0363P AN960-10 13 ⁄64” 7 ⁄16” 1 ⁄16”
NAS1149F0463P AN960-416 17 ⁄64” 1 ⁄2” 1 ⁄16”
NAS1149F0563P AN960-516 21 ⁄64” 9 ⁄16” 1 ⁄16”
NAS1149F0532P AN960-516L .328 .562 .032
NAS1149F0663P AN960-616 25 ⁄64” 5 ⁄8” 1 ⁄16”
NAS1149F0763P AN960-716 29 ⁄64” 3 ⁄4” 1 ⁄16”

BURR WASHERS

Stock Number Description Inside Diameter Outside Diameter Bolt Size
407-300 AN940-14 5 ⁄64” 3 ⁄8” 1 ⁄16”
408-947 #13 7 ⁄64” 3 ⁄8” 3 ⁄32”

MACHINE SCREWS

ROUND HEAD FLAT HEAD
Length 4-40 6-32 8-32 10-24 10-32 4-36 4-40 6-32 8-32 10-32
5 ⁄16” - 415-736 - - - - - - - -
3 ⁄8” 415-686 415-737 415-752 415-773 - - - - - -
1 ⁄2” 415-688 415-739 415-754 - 417-775 414-775 - 414-749 - 416-785
5 ⁄8” - 415-740 415-755 - 417-776 414-716 414-698 414-750 414-765 416-786
3 ⁄4” - 415-741 415-756 - 417-777 414-717 - 414-751 414-766 416-787
7 ⁄8” 415-691 415-742 415-757 - 417-778 - - - - -
1” - 415-743 415-758 - 416-789 - - - 414-768 416-789
1
1 ⁄8” - 415-745 415-760 - 417-779 - - - - 416-790
1 ⁄4” - 415-744 415-759 - 417-780 - - - - -
1
1 ⁄2” - - - - 417-781 - - - 414-771 -
1
1 ⁄4” - - - - - - - - - -
3
2” - - - - 417-783 - - - - -
2 ⁄4” - - 415-763 - - - - - - -
1
2 ⁄4” - - 415-765 - - - - - - -
3
OVAL HEAD FILLISTER HEAD TRUSS HEAD CAP HEAD
Length 4-36 6-32 8-32 10-32 10-32 1 ⁄4”-20
3 ⁄8” 415-208 415-242 415-257 - 416-994 -
1 ⁄2” 415-210 415-244 415-419 - - 418-420
5 ⁄8” - - - - 416-996 -
3 ⁄4” - - - 416-292 - -
7 ⁄8” - - - 418-789 - -
1” - - 415-261 - - 418-346
1 ⁄4” - - - - - 418-349
3

38
