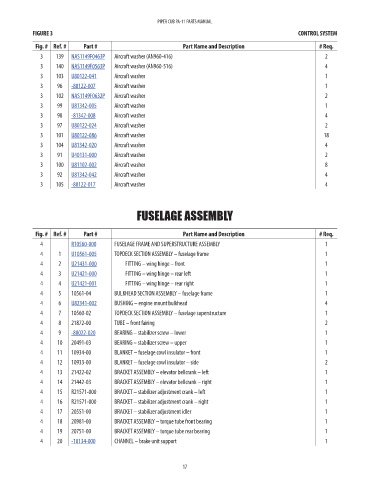

PIPER CUB PA-11 PARTS MANUAL
FIGURE 3 CONTROL SYSTEM

Fig. # Ref. # Part # Part Name and Description # Req. Price
3 139 NAS1149F0463P Aircraft washer (AN960-416) 2 0.06
3 140 NAS1149F0563P Aircraft washer (AN960-516) 4 0.08
3 103 U80122-041 Aircraft washer 1 13.35
3 96 -80122-007 Aircraft washer 1 6.11
3 102 NAS1149F0632P Aircraft washer 2 0.06
3 99 U81342-005 Aircraft washer 1 9.3
3 98 -81342-008 Aircraft washer 4 5.21
3 97 U80122-024 Aircraft washer 2 4.18
3 101 U80122-086 Aircraft washer 18 2.46
3 104 U81342-020 Aircraft washer 4 3.32
3 91 U40131-000 Aircraft washer 2 9.15
3 100 U81102-002 Aircraft washer 8 6.11
3 92 U81342-042 Aircraft washer 4 3.14
3 105 -80122-017 Aircraft washer 4 6.71

FUSELAGE ASSEMBLY

Fig. # Ref. # Part # Part Name and Description # Req. Price

4 R10560-000 FUSELAGE FRAME AND SUPERSTRUCTURE ASSEMBLY 1 19829.04
4 1 U10561-005 TOPDECK SECTION ASSEMBLY – fuselage frame 1 1670.77
4 2 U21431-000 FITTING – wing hinge – front 1 85.37
4 3 U21421-000 FITTING – wing hinge – rear left 1 48.48
4 4 U21421-001 FITTING – wing hinge – rear right 1 48.48
4 5 10561-04 BULKHEAD SECTION ASSEMBLY – fuselage frame 1 NM!
4 6 U82341-002 BUSHING – engine mount bulkhead 4 30.49
4 7 10560-02 TOPDECK SECTION ASSEMBLY – fuselage superstructure 1 NM!
4 8 21872-00 TUBE – front fairing 2 NM!
4 9 -80022-020 BEARING – stabilizer screw – lower 1 12.61
4 10 20491-03 BEARING – stabilizer screw – upper 1 NM!
4 11 10934-00 BLANKET – fuselage cowl insulator – front 1 NM!
4 12 10933-00 BLANKET – fuselage cowl insulator – side 2 NM!
4 13 21422-02 BRACKET ASSEMBLY – elevator bellcrank – left 1 NM!
4 14 21442-03 BRACKET ASSEMBLY – elevator bellcrank – right 1 NM!
4 15 R21571-000 BRACKET – stabilizer adjustment crank – left 1 NM!
4 16 R21571-000 BRACKET – stabilizer adjustment crank – right 1 NM!
4 17 20551-00 BRACKET – stabilizer adjustment idler 1 NM!
4 18 20981-00 BRACKET ASSEMBLY – torque tube front bearing 1 NM!
4 19 20751-00 BRACKET ASSEMBLY – torque tube rear bearing 1 NM!
4 20 -10134-000 CHANNEL – brake unit support 1 32.48

17
