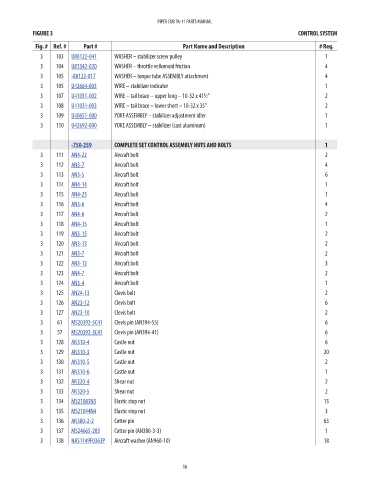

Page 24 - Piper PA-11 Cub Special Parts Manual

PIPER CUB PA-11 PARTS MANUAL
FIGURE 3 CONTROL SYSTEM

Fig. # Ref. # Part # Part Name and Description # Req. Price
3 103 U80122-041 WASHER – stabilizer screw pulley 1 13.35
3 104 U81342-020 WASHER – throttle vellumoid friction 4 3.32
3 105 -80122-017 WASHER – torque tube ASSEMBLY attachment 4 6.71
3 105 U42664-003 WIRE – stabilizer indicator 1 26.19
3 107 U41031-002 WIRE – tail brace – upper long – 10-32 x 41 ⁄2” 2 42.41
1
3 108 U41031-003 WIRE – tail brace – lower short – 10-32 x 35” 2 37.31
3 109 U40651-000 YOKE ASSEMBLY – stabilizer adjustment idler 1 42.97
3 110 U42692-000 YOKE ASSEMBLY – stabilizer (cast aluminum) 1 289.01

-750-259 COMPLETE SET CONTROL ASSEMBLY NUTS AND BOLTS 1 426.07
3 111 AN4-22 Aircraft bolt 2 0.9
3 112 AN3-7 Aircraft bolt 4 1
3 113 AN3-5 Aircraft bolt 6 0.6
3 114 AN4-14 Aircraft bolt 1 0.7
3 115 AN4-25 Aircraft bolt 1 0.88
3 116 AN3-6 Aircraft bolt 4 0.52
3 117 AN4-6 Aircraft bolt 2 0.52
3 118 AN4-15 Aircraft bolt 1 1
3 119 AN3-15 Aircraft bolt 2 0.84
3 120 AN3-13 Aircraft bolt 2 1.02
3 121 AN5-7 Aircraft bolt 2 0.78

3 122 AN3-12 Aircraft bolt 3 1.06
3 123 AN4-7 Aircraft bolt 2 0.58
3 124 AN3-4 Aircraft bolt 1 0.6
3 125 AN24-13 Clevis bolt 2 1.91
3 126 AN23-12 Clevis bolt 6 1.3
3 127 AN23-10 Clevis bolt 2 1.82
3 61 MS20392-5C41 Clevis pin (AN394-55) 6 1.62
3 57 MS20392-3C41 Clevis pin (AN394-41) 6 1.6
3 128 AN310-4 Castle nut 6 1.6
3 129 AN310-3 Castle nut 20 1.5
3 130 AN310-5 Castle nut 2 2
3 131 AN310-6 Castle nut 1 1.8
3 132 AN320-4 Shear nut 2 1.44
3 133 AN320-5 Shear nut 2 1
3 134 MS21083N3 Elastic stop nut 13 0.22
3 135 MS21044N4 Elastic stop nut 3 0.3
3 136 AN380-2-2 Cotter pin 63 0.04
3 137 MS24665-283 Cotter pin (AN380-3-3) 1 0.04
3 138 NAS1149F0363P Aircraft washer (AN960-10) 18 0.04

16
