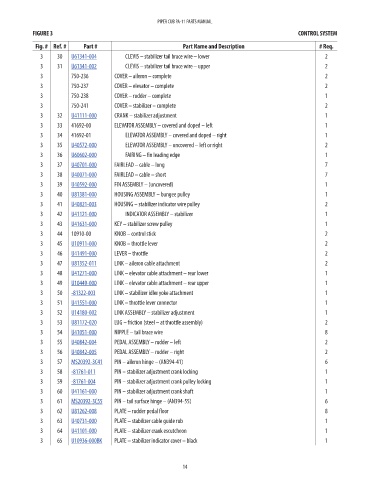

PIPER CUB PA-11 PARTS MANUAL
FIGURE 3 CONTROL SYSTEM

Fig. # Ref. # Part # Part Name and Description # Req. Price
3 30 U61341-004 CLEVIS – stabilizer tail brace wire – lower 2 48.26
3 31 U61341-002 CLEVIS – stabilizer tail brace wire – upper 2 44.31
3 750-236 COVER – aileron – complete 2 NM!
3 750-237 COVER – elevator – complete 2 NM!
3 750-238 COVER – rudder – complete 1 NM!
3 750-241 COVER – stabilizer – complete 2 NM!
3 32 U41111-000 CRANK – stabilizer adjustment 1 126.81
3 33 41692-00 ELEVATOR ASSEMBLY – covered and doped – left 1 NM!
3 34 41692-01 ELEVATOR ASSEMBLY – covered and doped – right 1 NM!
3 35 U40572-000 ELEVATOR ASSEMBLY – uncovered – left or right 2 674.78
3 36 U60602-000 FAIRING – fin leading edge 1 125.88
3 37 U40701-000 FAIRLEAD – cable – long 7 1.3
3 38 U40071-000 FAIRLEAD – cable – short 7 1.32
3 39 U40592-000 FIN ASSEMBLY – (uncovered) 1 565.72
3 40 U81381-000 HOUSING ASSEMBLY – bungee pulley 1 79.4
3 41 U40821-003 HOUSING – stabilizer indicator wire pulley 2 12.84
3 42 U41121-000 INDICATOR ASSEMBLY – stabilizer 1 34.71
3 43 U41631-000 KEY – stabilizer screw pulley 1 16.1
3 44 10910-00 KNOB – control stick 2 NM!
3 45 U10911-000 KNOB – throttle lever 2 12.44
3 46 U41491-000 LEVER – throttle 2 76.8

3 47 U81352-011 LINK – aileron cable attachment 2 10.44
3 48 U41271-000 LINK – elevator cable attachment – rear lower 1 22.94
3 49 U10449-000 LINK – elevator cable attachment – rear upper 1 34.19
3 50 -81322-003 LINK – stabilizer idler yoke attachment 1 14.25
3 51 U41551-000 LINK – throttle lever connector 1 61.33
3 52 U14180-002 LINK ASSEMBLY – stabilizer adjustment 1 311.56
3 53 U81172-020 LUG – friction (steel – at throttle assembly) 2 8.58
3 54 U41051-000 NIPPLE – tail brace wire 8 30.51
3 55 U40842-004 PEDAL ASSEMBLY – rudder – left 2 158.36
3 56 U40842-005 PEDAL ASSEMBLY – rudder – right 2 169.41
3 57 MS20392-3C41 PIN – aileron hinge – (AN394-41) 6 1.6
3 58 -81761-011 PIN – stabilizer adjustment crank locking 1 10.08
3 59 -81761-004 PIN – stabilizer adjustment crank pulley locking 1 12.4
3 60 U41161-000 PIN – stabilizer adjustment crank shaft 1 37
3 61 MS20392-3C55 PIN – tail surface hinge – (AN394-55) 6 1.08
3 62 U81262-008 PLATE – rudder pedal floor 8 12.3
3 63 U40731-000 PLATE – stabilizer cable guide rub 1 11.06
3 64 U41101-000 PLATE – stabilizer crank escutcheon 1 35.56
3 65 U10936-000BK PLATE – stabilizer indicator cover – black 1 72.26

14
