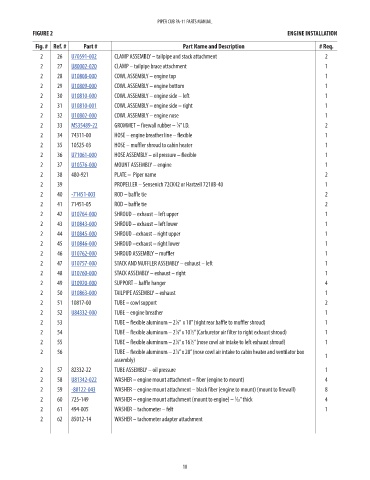

PIPER CUB PA-11 PARTS MANUAL
FIGURE 2 ENGINE INSTALLATION

Fig. # Ref. # Part # Part Name and Description # Req. Price
2 26 U70591-002 CLAMP ASSEMBLY – tailpipe and stack attachment 2 34.61
2 27 U80002-020 CLAMP – tailpipe brace attachment 1 27.9
2 28 U10808-000 COWL ASSEMBLY – engine top 1 196.45
2 29 U10809-000 COWL ASSEMBLY – engine bottom 1 402.22
2 30 U10810-000 COWL ASSEMBLY – engine side – left 1 459.77
2 31 U10810-001 COWL ASSEMBLY – engine side – right 1 459.77
2 32 U10802-000 COWL ASSEMBLY – engine nose 1 1773.73
2 33 MS35489-22 GROMMET – firewall rubber – ⁄8” I.D. 2 2.34
7
2 34 74311-00 HOSE – engine breather line – flexible 1 NM!
2 35 10525-03 HOSE – muffler shroud to cabin heater 1 NM!
2 36 U71061-000 HOSE ASSEMBLY – oil pressure – flexible 1 143.43
2 37 U10576-000 MOUNT ASSEMBLY – engine 1 1049.49
2 38 480-921 PLATE – Piper name 2 NM!
2 39 PROPELLER – Sensenich 72CK42 or Hartzell 7210B-40 1 x
2 40 -71451-003 ROD – baffle tie 2 55.44
2 41 71451-05 ROD – baffle tie 2 NM!
2 42 U10764-000 SHROUD – exhaust – left upper 1 176.05
2 43 U10843-000 SHROUD – exhaust – left lower 1 265.74
2 44 U10845-000 SHROUD –exhaust – right upper 1 177.59
2 45 U10846-000 SHROUD –exhaust – right lower 1 245.04
2 46 U10762-000 SHROUD ASSEMBLY – muffler 1 395.78

2 47 U10757-000 STACK AND MUFFLER ASSEMBLY – exhaust – left 1 2771.22
2 48 U10760-000 STACK ASSEMBLY – exhaust – right 1 2172.63
2 49 U10920-000 SUPPORT – baffle hanger 4 23.03
2 50 U10863-000 TAILPIPE ASSEMBLY – exhaust 1 189.65
2 51 10817-00 TUBE – cowl support 2 NM!
2 52 U84332-000 TUBE – engine breather 1 99.11
2 53 TUBE – flexible aluminum – 2 ⁄8” x 10” (right rear baffle to muffler shroud) 1 x
1
2 54 TUBE – flexible aluminum – 2 ⁄8” x 10 ⁄2” (Carburetor air filter to right exhaust shroud) 1 x
1
1
1
2 55 TUBE – flexible aluminum – 2 ⁄8” x 16 ⁄2” (nose cowl air intake to left exhaust shroud) 1 x
1
2 56 TUBE – flexible aluminum – 2 ⁄8” x 28” (nose cowl air intake to cabin heater and ventilator box x
1
assembly) 1
2 57 82332-22 TUBE ASSEMBLY – oil pressure 1 NM!
2 58 U81342-022 WASHER – engine mount attachment – fiber (engine to mount) 4 5.79
2 59 -80122-043 WASHER – engine mount attachment – black fiber (engine to mount) (mount to firewall) 8 4.51
2 60 725-149 WASHER – engine mount attachment (mount to engine) – ⁄32” thick 4 NM!
3
2 61 494-005 WASHER – tachometer – felt 1 NM!
2 62 85012-14 WASHER – tachometer adapter attachment NM!

10
